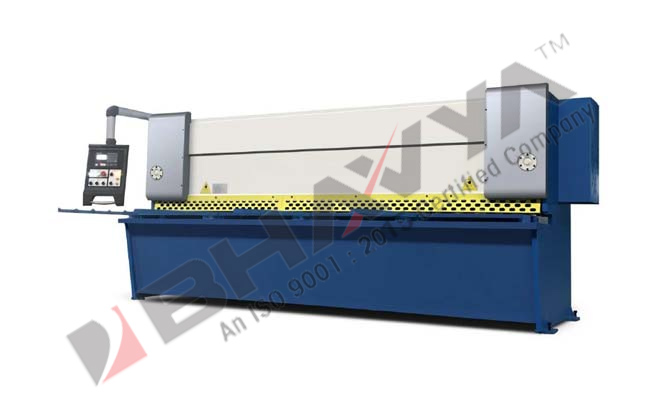

Hydraulic Shearing Machine (HVR Series)

Hydraulic Shearing Machine (HVR Series)
SHEARING

Model No

  • HFR 215
  • HFR 220
  • HFR 225
  • HVR 312 - HVR 2560

Technical Specifications

Length Cutting Shearing Capacity Nominal Rake Angle Nominal Rake Angle Rake Angle Range Rake Angle Stroke Per min No. of Hold Downs Holding Force Power Packing Dimension Weight
Model in mm Thickness in mm in degree in degree Min. Max. In Kg. in HP Kg.
M.S. S.S
HFR 215 1500 2 2 1.25 1.25 1°12' 1°12' 16 16 - - 3 2000X1000X1250 1300
HFR 220 2000 2 2 1.25 1.25 1°12' 1°12' 16 16 - - 3 2500X1250X1500 1700
HFR 225 2500 2 2 1.25 1.25 1°12' 1°12' 16 16 - - 3 3000X1250X1850 2500
HVR 312 1250 3.15 4 2 3.15 1°30' 0.5-2° 16 11 8 1200 3 1700X1250X1950 2000
HVR 315 1500 3.15 4 2 3.15 1°30' 0.5-2° 15 10 9 1500 3 2200X1250X1950 2500
HVR 320 2000 3.15 4 2 3.15 1°30' 0.5-2° 14 8 11 2000 3 2700X1250X1950 3000
HVR 325 2500 3.15 4 2 3.15 1°30' 0.5-2° 19 11 13 2300 5 3200X1250X2000 3700
HVR 330 3000 3.15 4 2 3.15 1°30' 0.5-2° 18 9 16 2600 5 3700X1400X2100 4250
HVR 340 4000 3.15 4 2 3.15 1°30' 0.5-2° 15 8 20 3200 7.5 4700X1500X2250 6000
HVR 415 1500 4 6 3 4 1°37' 0.5-3° 23 13 9 4500 7.5 2250X1250X2050 3200
HVR 420 2000 4 6 3 4 1°37' 0.5-3° 23 11 11 6200 7.5 2750X1250X2100 3700
HVR 425 2500 4 6 3 4 1°37' 0.5-3° 21 9 13 8000 7.5 3300X1400X2250 4200
HVR 430 3000 4 6 3 4 1°37' 0.5-3° 23 10 16 10000 7.5 3700X1500X2400 5250
HVR 440 4000 4 6 3 4 1°37' 0.5-3° 22 8 20 12000 10 4700X1650X2600 7200
HVR 615 1500 6 8 4 6 1°45' 0.5-3° 23 13 9 6500 10 2250X1300X2100 3250
HVR 620 2000 6 8 4 6 1°45' 0.5-3° 22 10 11 6500 10 2750X1350X2150 4250
HVR 630 3000 6 8 4 6 1°45' 0.5-3° 20 8 16 10800 15 3800X1650X2500 5750
HVR 640 4000 6 8 4 6 1°45' 0.5-3° 22 9 20 13600 20 4800X1700X2750 8250
HVR 650 5000 6 8 4 6 1°45' 0.5-3° 21 7 24 16500 20 5700X1800X2850 11500
HVR 660 6300 6 8 4 6 1°45' 0.5-3° 18 6 28 19500 20 6700X1900X2950 14500
HVR 815 1500 8 10 6 8 2' 0.5-3° 15 8 9 10500 10 2250X1350X2100 4750
HVR 820 2000 8 10 6 8 2' 0.5-3° 15 6 11 12000 15 2750X1450X2250 5700
HVR 825 2500 8 10 6 8 2' 0.5-3° 18 8 13 16500 20 3300X1650X2450 6500
HVR 830 3000 8 10 6 8 2' 0.5-3° 17 6 16 18500 20 3800X1800X2600 7000
HVR 840 4000 8 10 6 8 2' 0.5-3° 15 5 20 23000 20 4800X1850X2800 9500
HVR 850 5000 8 10 6 8 2' 0.5-3° 18 6 24 27000 25 5750X1950X2900 12250
HVR 860 6300 8 10 6 8 2' 0.5-3° 15 5 30 31000 25 6750X2100X3100 17000
HVR 1015 1500 10 12 8 10 0.5-3° 12 6 8 10500 10 2250X1350X2200 5000
HVR 1020 2000 10 12 8 10 0.5-3° 13 5 11 13000 15 2750X1500X2300 6000
HVR 1025 2500 10 12 8 10 0.5-3° 13 5 13 17500 20 3300X1650X2500 6750
HVR 1030 3000 10 12 8 10 0.5-3° 12 4 16 20000 20 3800X1850X2750 9000
HVR 1040 4000 10 12 8 10 0.5-3° 18 6 20 25000 25 4800X1950X2850 12000
HVR 1050 5000 10 12 8 10 0.5-3° 14 5 24 30000 30 5750X2050X3000 15000
HVR 1060 6300 10 12 8 10 0.5-3° 13 4 28 35000 30 6750X2200X3300 22000
HVR 1320 2000 13 16 10 13 1-3° 13 6 11 16000 25 2850X1800X2600 9000
HVR 1325 2500 13 16 10 13 1-3° 9 5 13 20000 25 3350X1900X2750 10000
HVR 1330 3000 13 16 10 13 1-3° 8 4 16 25000 25 3800X1950X2850 11500
HVR 1340 4000 13 16 10 13 1-3° 7 3 20 30000 30 4800X2000X2950 16000
HVR 1350 5000 13 16 10 13 1-3° 9 4 24 35000 40 5750X2150X3150 21000
HVR 1360 6300 13 16 10 13 1-3° 8 4 28 40000 40 6750X2300X3500 28000
HVR 1620 2000 16 20 13 16 1-3° 9 5 11 20000 30 3000X1900X2800 10500
HVR 1625 2500 16 20 13 16 1-3° 9 4 13 25000 30 3500X2000X2900 12250
HVR 1630 3000 16 20 13 16 1-3° 8 4 16 28000 30 4000X2000X3000 14500
HVR 1640 4000 16 20 13 16 1-3° 6 3 20 33000 30 4800X2050X3100 19000
HVR 1650 5000 16 20 13 16 1-3° 7 3 24 38000 40 5750X2250X3300 26000
HVR 1660 6300 16 20 13 16 1-3° 6 3 28 43000 40 6750X2350X3700 31500
HVR 2025 2500 20 25 16 20 1-3° 6 3 13 28000 40 3500X2000X3000 16000
HVR 2030 3000 20 25 16 20 1-3° 6 2 16 35000 40 4000X2100X3200 19500
HVR 2040 4000 20 25 16 20 1-3° 5 2 20 40000 50 4800X2200X3300 23500
HVR 2050 5000 20 25 16 20 1-3° 6 3 24 45000 60 5800X2350X3500 30000
HVR 2060 6300 20 25 16 20 1-3° 5 2 28 50000 60 6800X2450X4100 36000
HVR 2525 2500 25 30 20 25 1-3° 5 3 13 36000 60 3400X2250X3300 22000
HVR 2530 3000 25 30 20 25 1-3° 4 2 16 45000 60 4000X2300X3300 25500
HVR 2540 4000 25 30 20 25 1-3° 5 2 20 50000 75 5000X2300X3500 31000
HVR 2550 5000 25 30 20 25 1-3° 4 2 24 55000 75 6000X2450X3700 36000
HVR 2560 6300 25 30 20 25 1-3° 3 1 28 60000 75 7000X2600X4300 42000

*Specifications are subject to changed without prior notice.

Accessories

Standard :
  • Electric control panel
  • Hardened transfer bars mounted on table
  • Rake angle selection through selector switch
  • Lever operated blade clearance with calibration
  • Fine stroke adjustment rod with limit switch
  • Back gauge on double guide rods & lead screw
  • Front sheet support
  • Squaring arm with steel ruler on left side
  • Hold down cylinders mounted on machine
  • Four edge HCHCr blade suitable to cut MS & SS Material**
  • Manual back gauge
Optional :
  • Motorized back gauge with DRO
  • Second squaring arm on other side
  • Front support with roller according to required length
  • Rear Sheet support
  • Timer belt drive for back gauge
  • Ball Transfer Table
  • Degree protector for angular cutting
  • Stroke counter
  • Design with throat depth
  • First fill of Hydraulic oil

Features

  • Guillotine type hydraulically variable rake angle design
  • Twist free & better cutting result in thin sheets at lower rake angle
  • Cutting job accuracy as per DIN Standard
  • Higher cutting capacity than rated capacity at higher rake angle
  • The stable & robust structure from ultrasonically & tensile tested IS:2062 grade steel
  • Rigid box type structure of ram & table with inclined member in direction of resultant force
  • Hydraulic & electrical safety interlocks for overloading.
  • NC up-gradation possible
  • Bolted type Square Box assembly for holding cylinder mounting
  • Special guided seal for holding cylinder to avoid leakage
  • All Electrical & hydraulic component from reputed make
  • Ram quided six hardened & grounded guide rollers
  • Suitable for upgradation with special optional features

Videos

Hydraulic Shearing Machine
