All Geared Radial Drill

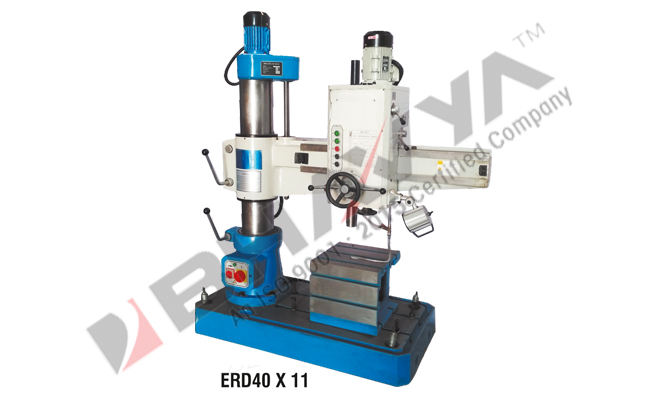

ERD40 x 11,..
MODEL ERD40 X 13E ERD40 x 13HE ERD40 x 13HE-2
Maximum hole diameter 40mm (M.S.) 40mm (M.S.) 40mm (M.S.)
Distance between the spindle center to column minimum & Maximum 315-1195mm 315-1195mm 300-1165mm
Horizontal Travel of spindle 880mm 880mm 865mm
Spindle face to Base 300mm (min.)
1110mm (max.)		 300mm (min.)
1110mm (max.)		 260mm (min.)
1130mm (max.)
spindle travel(mm) 195 195 280
Column Diameter(mm) 230 230 230
Spindle cone hole MT-4 MT-4 MT-4
Spindle speed 12(r/min) 34-1220 34-1220 22-1400
Feed level 3 0. 10-0. 2 5 0. 10-0. 2 5 0. 10-0. 2 5
Arm vertical speed(m/min) 1.3 1.3 1.3
Arm rotation angle (0) ± 180 ± 180 ± 180
Main motor power(kw) D 1.5, D 2.2 D 1.5, D 2.2 3
Lifting motor power (kw) 1.1 1.1 1.1
Machine Dimensions (mm)
(Length X width X height)		 1750 x 770 x 2250 1765 x 795 x 2250 1880 x 795 x 2300
Net weight (approx..) (kg) 1200 1400 1565
MODEL ERD40 x 11 ERD50 x 16B
Max drilling Capacity 40mm 50mm
Distance between spindle axis and column 1030mm (Max)
350mm (Min)		 1600mm (Max)
350mm (Min)
Distance between spindle and working base Plate 1100mm (Max)
170mm (Min)		 1100mm (Max)
200mm (Min)
Spindle travel 260mm 250mm
Taper in spindle MT-4 MT-5
Range of spindle speeds(rpm) 40-1896 35-1400
Number of spindle speeds 12 12
Range of spindle feed 0.13-0.54mm/r 0.054-1.732 rpm/9 steps
Number of spindle Feeds 4 4
Diameter of Column 230mm 280mm
Power Supply of Main Motor(kW) 3kw 4kw
Power Supply of Elevating Motor(kW) 0.55kw 1.5kw
Net Weight(kg) 1600kg 2400 Kg.
