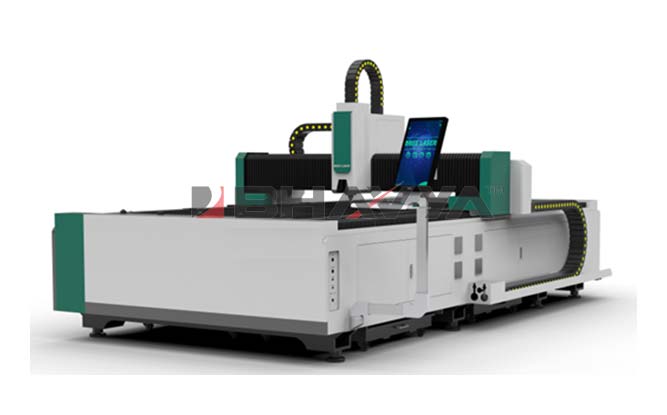

Casting Body

F - Series

Technical Specifications

Photos Gallery

Model	OR-F3015	OR-F4020	OR-F6020	OR-F6025
Working size	3080*1530mmm	4080*2030mm	6080*2030mm	2530×6080mm
X-Axis Stroke	1500mm	2000mm	2000mm	2500mm
Y-Axis Stroke	3000mm	4000mm	6000mm	6000mm
Z-Axis Stroke	120mm
X/Y Axis positional accurancy	±0.02mm
X/Y Axis repeat positional accurancye	±0.03mm
X/Y Axis max moving speed	140m/min
Max accelaration	1.5G
X Axis motor powern	0.85kw	0.85kw(<3000W) 1.3kw(≥3000W)		1.3kw
Y Axis motor power	1.3kw	1.8kw(<3000W) 2.9kw(≥3000W)		2.9kw
Z Axis motor power	0.4kw
Maximum load of working platform	800kg	1600kg	2400kg	3000kg
Rail	X	3000kg
	Y	3000kg
	Z	3000kg
Rack	Taiwan APEX/YYC
Reducer	French MOTOREDUCER
Machine bed	Cast iron machine bed
Beam	Aviation aluminum		Cast aluminum
Controller	Cypcut
Input	380V/50-60Hz
Limitation	Japan Omron
Electric component	French Schneider
Pneumatic component	SMC/AirTAC
Servo motor	Japan YASKAWA
Lubrication	Automatic
Water chiller	Tongfei
Exhaust fan	3kw
source power is available	1000W,1500W,2000W,3000W,4000W,6000W
Total power	1000W laser source	15kw
	1500W laser source	17kw
	2000W laser source	20kw
	3000W laser cource	24kw
	4000W laser cource	27kw
	6000W laser cource	35kw
Size: lenghtwidthheight	46302470 2000mm	58303000 2000	79503000 2000	795036002000
Weight	5200kg	6000kg	10000kg	10500kg
