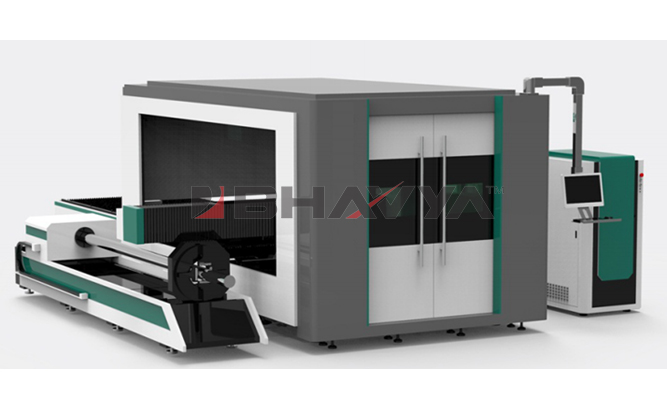

Casting Body With Enclosure, Pallet Changer &tube Cutting Attachment

Model: PT Series

Technical Specifications

Photos Gallery

Model	OR-P3015T	OR-P4020T	OR-P6020T
Working size	3080*1530mm	4080*2030mm	6080*2030mm
X-Axis Stroke	1500mm	2000mm	2000mm
Y-Axis Stroke	3000mm	4000mm	6000mm
Z-Axis Stroke	120
X/Y Axis repeat positional accurancy	±0.02mm
X/Y Axis repeat positional accurancy	±0.03mm
Pipe diameter range	20-220mm(minimum side length of square tube or rectangular tube is 20mm, maximum side length is 155mm)
Maximum length of pipe	3m/6m
Maximum load of chuck	200kg 30kg/m
X Axis motor power	0.85kw	0.85kw(<3000W)	1.3kw(≥3000W))
Y Axis motor power	1.3kw	1.85kw(<3000W)	2.9kw(≥3000W))
Z Axis motor power	0.4kw
Maximum load of working platform	800kg	1600kg	2400kg
Rail	X	Taiwan Brand
	Y	Taiwan Brand
	Z	Taiwan Brand
Rack	Taiwan APEX/YYC
Reducer	French MOTOREDUCER
Machine bed	Cast iron machine bed
Beam	Aviation aluminum		Cast aluminum
Controller	Cypcut2000?Cyp cut?±Tube Pro(3000S)
Input	380V/50-60Hz
Limitation	Japan Omron
Electric component	French Schneider
Water chiller	Tongfei
Exhaust fan	3kw
source power is available	1000W,1500W,2000W,3000W,4000W,6000W
Total power	1000W laser source	22kw
	1500W laser source	23.5kw
	2000W laser source	27.1kw
3000W laser cource	32kw
4000W laser cource	37kw
6000W laser cource	42kw
Size: lenghtwidthheight	766032502000	1000044802400	1400044802400
Weight	7000kg+T	11000kg +T	15500kg +T
