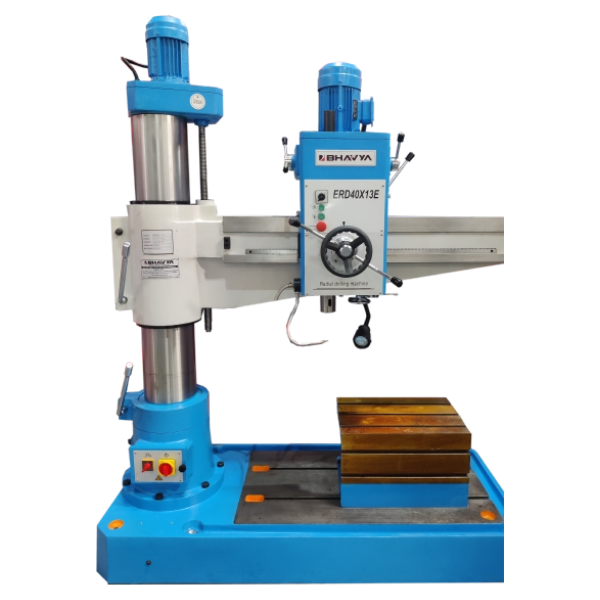

All Geared Extra Heavy Duty Radial Drill Machine With Mechanical Clamping : ERD40x11

595,000.00

All Geared Extra Heavy Duty Radial Drill Machine With Mechanical Clamping Model ERD40 x 11 with Specification :-

  • Drilling Capacity : 40mm
  • Tapping Capacity : M25
  • Boring Capacity : 100mm
SKU: ERD40x11 Category:

Description

Model ERD40 x 11
Drilling Capacity 40mm
Tapping Capacity M25
Boring Capacity 100mm
Taper in Spindle MT4
Spindle Travel 260mm
Number of Spindle Speeds 12
Range of Spindle Speeds 40-1896rpm
Number of Spindle Auto Feeds 4
Range of Spindle Auto Feeds 0.13-0.54mm/rev.
Drill Head & Column Locking Manual
Arm Lenght 1100mm
Dist. Spindle Axis and Column. 350/1030 mm
Dist. Spindle and Base Plate 170/1100 mm
Diameter od Column 230 mm
Box Table Size 560 x 380 x 300mm
Number Of T Slots Box Table 3
Size in T Slots in Box Table 16mm
Power Supply of Main Motor 3.0 KW
Power Supply of Elevating Motor 0.55 KW
Length x Width x Height 1800 x 820 x 2000mm
Net Weight 1500Kgs.
