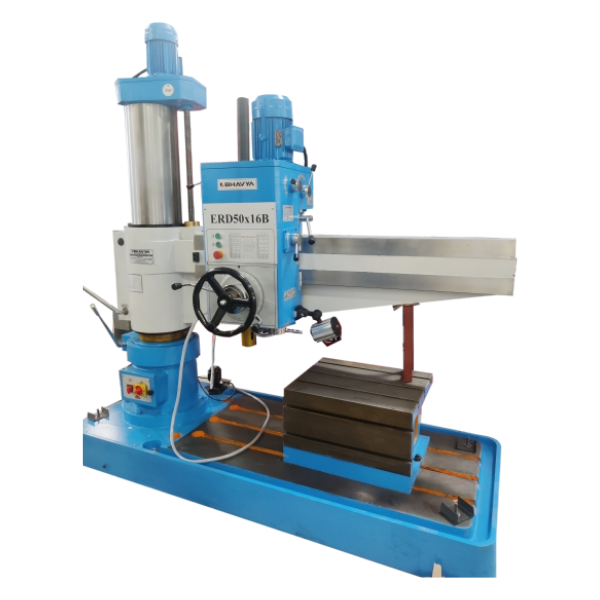

All Geared Extra Heavy Duty Radial Drill Machine With Mechanical Clamping : ERD50X16B

790,000.00

All Geared Extra Heavy Duty Radial Drill Machine With Mechanical Clamping Model ERD50X16B with Specification :-

  • Drilling Capacity : 50mm
  • Tapping Capacity : M25
  • Boring Capacity : 100mm
SKU: ERD50X16B Category:

Description

Model ERD50 x 16B
Drilling Capacity 50mm
Tapping Capacity M25
Boring Capacity 100mm
Taper in Spindle MT5
Spindle Travel 315mm
Number of Spindle Speeds 12
Range of Spindle Speeds 40-1280rpm
Number of Spindle Auto Feeds 12
Range of Spindle Auto Feeds 0.1-0.56mm/rev.
Drill Head & Column Locking Manual
Arm Lenght 1600mm
Dist. Spindle Axis and Column. 360/1600 mm
Dist. Spindle and Base Plate 300/1050 mm
Diameter od Column 280 mm
Box Table Size 600 x 500 x 310mm
Number Of T Slots Box Table 3
Size in T Slots in Box Table 16mm
Power Supply of Main Motor 4 KW
Power Supply of Elevating Motor 1.55 KW
Length x Width x Height 2270 x 950 x 2450mm
Net Weight 3000Kgs.
