Arm Type Drilling & Tapping Machine Without Working Table

346,458.00363,398.00

Machine Features

  • The Electric servo cantilever drilling and taping machine is suitable for drilling and tapping various machines, moulds and auto parts.
  • The whole machine adopts the suspended manipulator mode, which realizes the integrated interchange of drilling and tapping, which is flexible and convenient.
  • The operation interface adopts Touch Screen operations to make drilling and tapping easier and more convenient, which can be operated by any general worker.
  • This machine adopts cantilever drilling and tapping integration, which is fast and convenient  replacing the existing drilling and tapping products in the market.

Focus On Precision And Detail

  • The machine has the servomotor. Collet with overload protection, no broken screw tap

Standard Accessories

  • DRILLING ADAPTOR WITH CHUCK : 1 NOS.
  • TAPPING ADAPTOR WITH TAPPING SPINDLE : 1 NOS.
  • STANDARD COLLET SET : 1 NOS.
  • ISO GT/12: M5, M6-8, M10, M12, ISO GT/24: M14, M16, M18-20
  • REDUCER COLLET GT/12 TO GT/24 : 1NOS.
  • TORQUE WRENCH : 1NOS.
  • POWER CABLE : 1NOS.
  • USER MANUAL
SKU: DT20 Category:

Description

Model DT20
Voltage 220V/50HZ
Power 1000W
Tapping Range M5 – M20
Drilling Range 3–16 MM
Speed 0-315 RPM
Drilling Speed 1300 RPM
Weight 270 KG
Working Depth 80 MM
Working Height 400 MM

Specification

Additional information

Flute Type

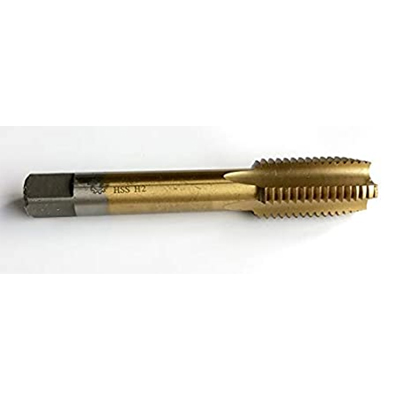

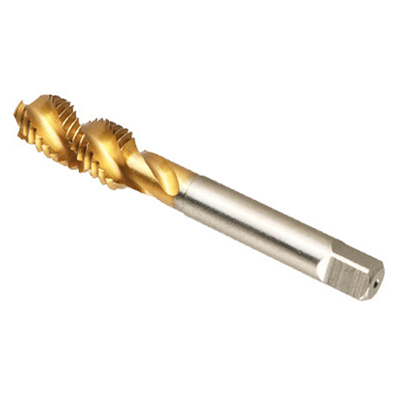

Straight Flute, Spiral Flute

Flute Size

M3.0 x 0.50, M4.0 x 0.70, M5.0 x 0.80, M6.0 x 1.00, M8.0 x 1.25, M10 x 1.50, M12 x 1.75, M14 x 2.00, M16 x 2.00, M18 x 2.50, M20 x 2.50, M24 x 3.00, M27 x 3.00, M30 x 3.50, M36 x 4.00
