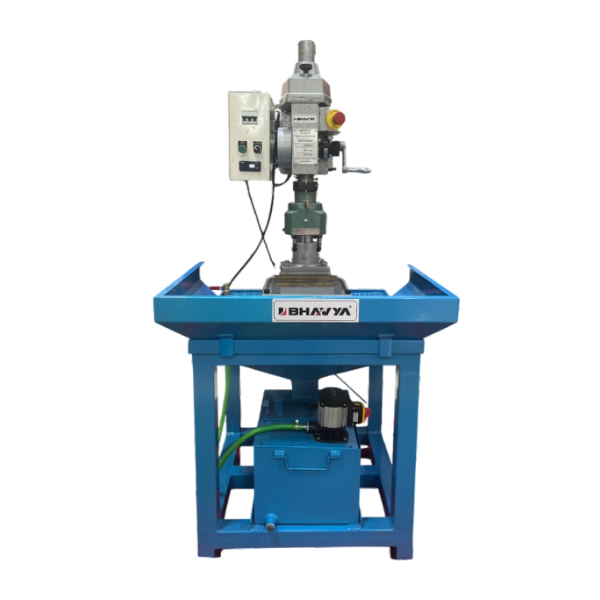

Automatic Flexible Arm Tapping Machine : JT-4508

209,500.00

Tapping Machine Model JT-4508 with specifications of :-

  • Spindle Taper :MT2
  • Spindle Travel :60mm
  • Size of Worktable : 235x230mm
SKU: JT-4508 Category:

Description

PARTICULARS / MODEL JT-4508
Maximum Tapping Capacity for Stainless Steel M1 – M8mm
Maximum Tapping Capacity for Aluminum Steel M1 – M12mm
Spindle Taper MT2
Spindle Travel 60mm
Size of Worktable 235x230mm
Max. Distance Spindle to Table 470mm
Max. Distance between Spindle and column 185mm
Spindle Speed 1600,900,500rpm
Motor 1HP
Overall Size 600 x 300 x 930mm
Weight 120kg
