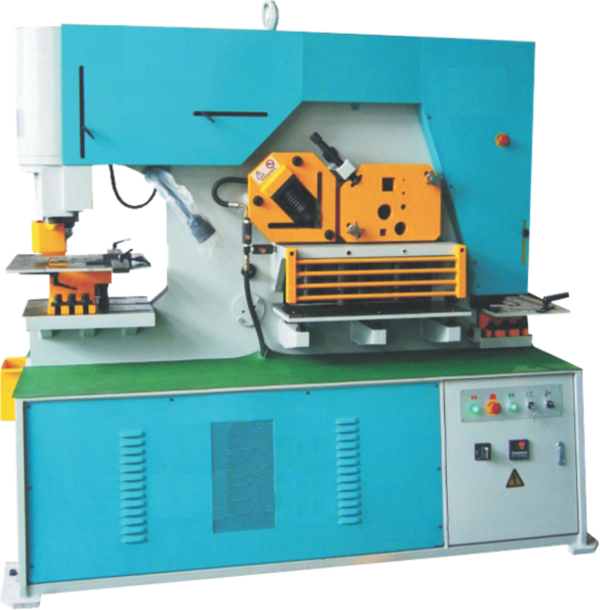

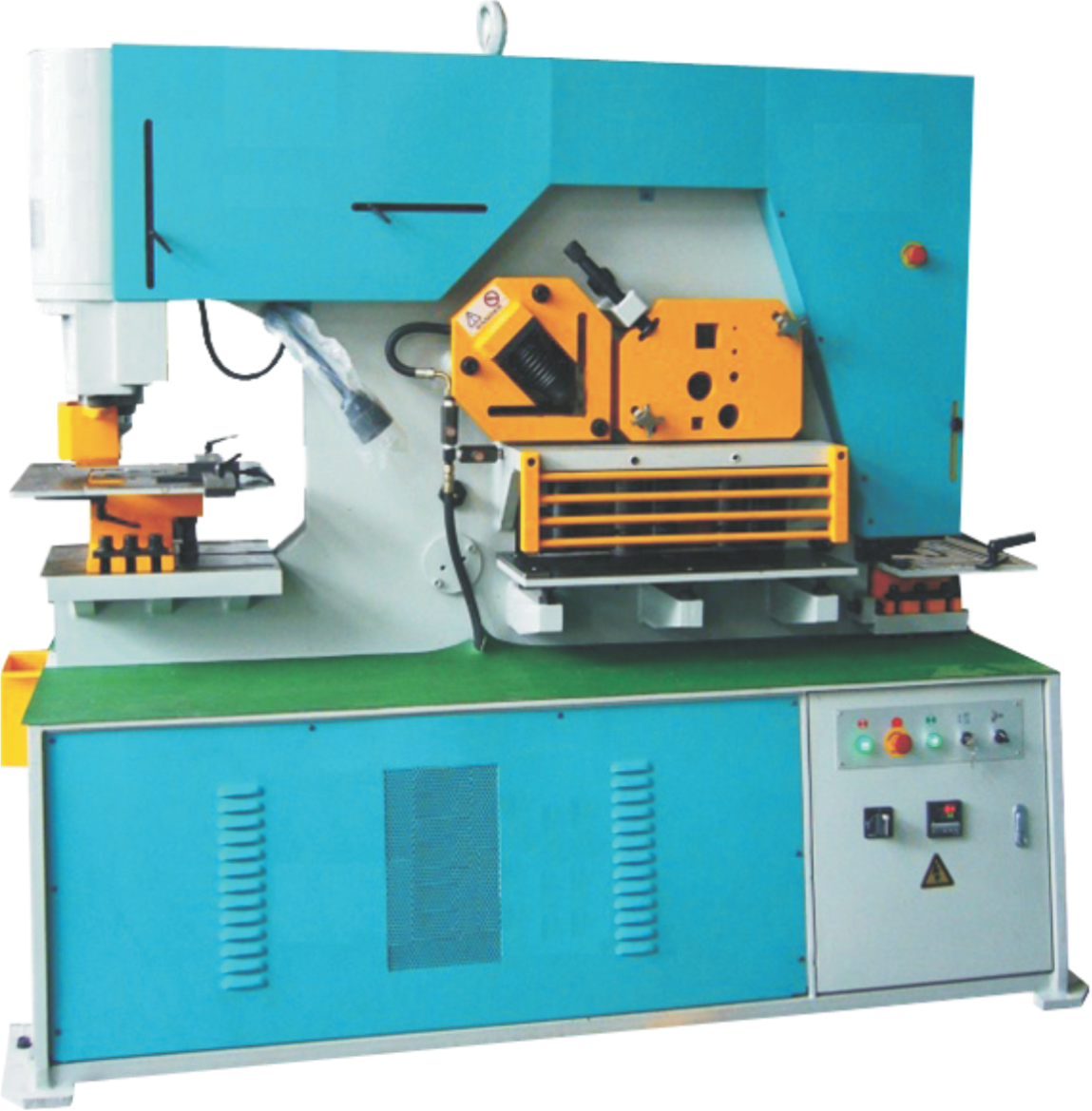

HYDRAULIC IRON WORKER Double Cylinder with Five Working Station Fitted with Foot Pedals for Separate Operation. The main Hydraulic Valve used YUKEN Japan International Brand. Main Electrical Components are used in Germany Schneider Electric Brand. About Limit Switch we use Omron proximity switches.
| Model No | IW-60L |
| Punching Pressure | 60 Ton |
| Punching Capacity | 25mm X 16mm (Dia x Thk) |
| Flat Shearing (Min/Max) | 8 x 400/16 x 250mm (Wx H) |
| Angle Shearing | 120 x 120 x 12mm |
| Round Bar Shearing | 45mm |
| Square Bar Shearing | 40mm x 40mm |
| Total Power | 4 Kw |
Standard Accessories
- Round Punch & Die : 1 Set
- Angle Shearing Blade : 1 Set
- Flat Bar Shearing Blade : 1 Set
- Rectangle Notch Blade : 1 Set
- Round & Square Bar Shearing Blade : 1 Set
- Foot Pedal : 1 Set
- Working Light : 1 Pcs.
- Standard Back Gauge : 1 Pcs.
- Tool Box : 1 Set
Optional Accessories
- Round Punch & Die (7mm to 50mm in 1mm Progression)
- Special Punch & Die
- Channel Shearing Blade
- Joist Shearing Blade
- Round & Square Bar Shearing Blade : 1 Set
- H/I – Beam Shearing Blade
