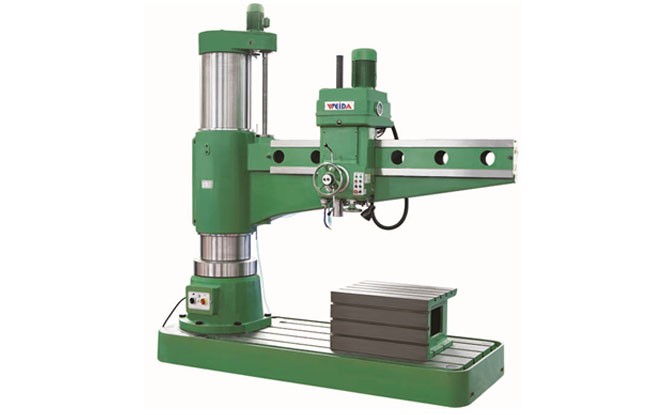

Radial Drill Machine – HRD63X20

2,350,000.00

All Geared Radial Drill Machine with Hydraulic clamping Machine :-

  • Max. Drilling Diameter : 63mm
  • Distance Spindle axis and column : 450-2000mm
  • Spindle Travel : 400mm
  • Spindle Taper : MT 5

Standard Accessories

Electricals, Machine Lamp, Coolant System, Foundation Bolt, Tool Box & Instruction Manual

SKU: HRD63X20 Category:

Description

Specification

PARTICULARS / MODEL HRD63X20
Max. Drilling Diameter 63mm
Distance Spindle axis and column 450-2000mm
Distance Spindle nose and working surface on base 400-1600mm
Spindle Travel 400mm
Spindle Taper MT 5
Range of Spindle Speed 20-1600rpm
Number of Spindle Speed 16 step
Range of Spindle Feed 0.04-3.2mm/r
Number of Spindle Feed 16 step
Table Size 800x630x500mm
Distance of Horizontal Movment 1600mm
Spindle Motor Power 5.5kw
Machine Weight 7000kg
