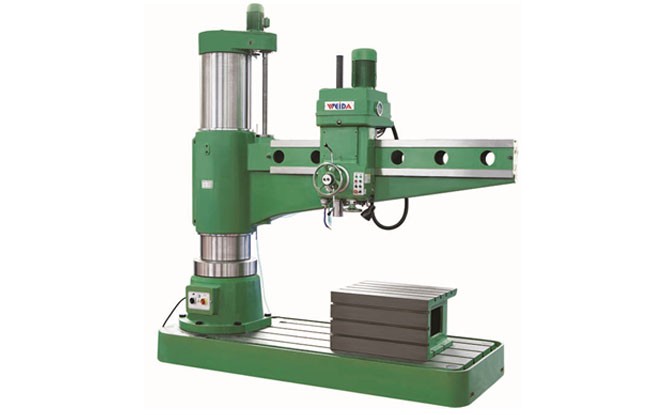

Radial Drill Machine – HRD80X25

2,975,000.00

All Geared Radial Drill Machine with Hydraulic clamping Machine :-

  • Max. Drilling Diameter : 80mm
  • Distance Spindle axis and column : 500-2500mm
  • Spindle Travel : 450mm
  • Spindle Taper : MT 6

Standard Accessories

Electricals, Machine Lamp, Coolant System, Foundation Bolt, Tool Box & Instruction Manual

SKU: HRD80X25 Category:

Description

Specification

PARTICULARS / MODEL HRD80X25
Max. Drilling Diameter 80mm
Distance Spindle axis and column 500-2500mm
Distance Spindle nose and working surface on base 550-2000mm
Spindle Travel 450mm
Spindle Taper MT 6
Range of Spindle Speed 16-1250rpm
Number of Spindle Speed 16 step
Range of Spindle Feed 0.04-3.20mm/r
Number of Spindle Feed 16 step
Table Size 1000x800x560mm
Distance of Horizontal Movment 2000mm
Spindle Motor Power 7.5kw
Machine Weight 11000kg
