Description

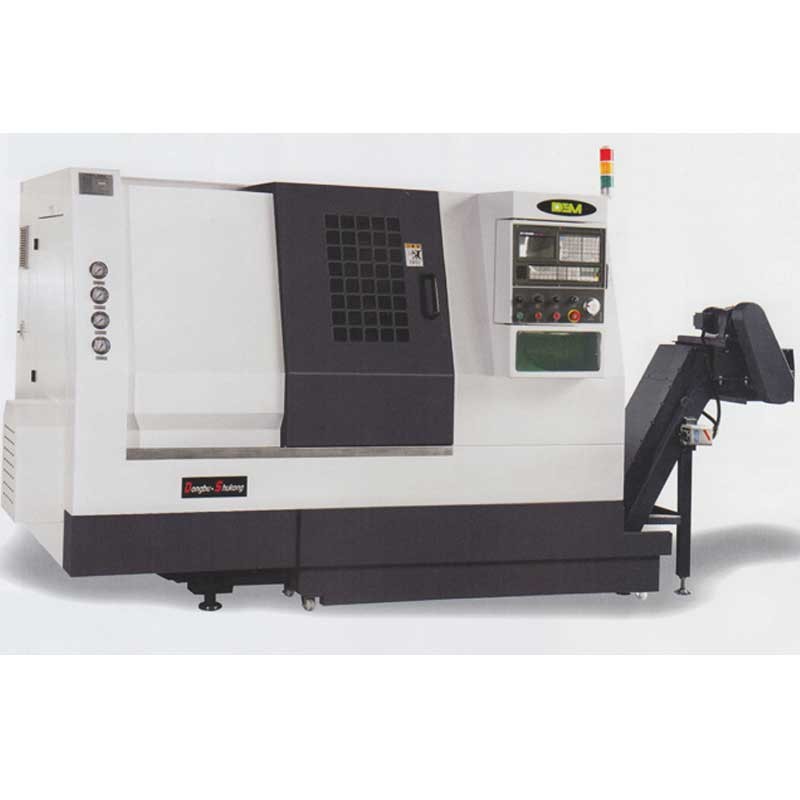

Model |
C400K |
| Maximum Swing Over Bed | Ø 400mm |
| Maximum Swing Over Solid | Ø 250mm |
| Maximum Machining Length with Hydraulic Chuck | 430mm |
| Spindle Taper Hole | Ø 62mm |
| Maximum Bar Diameter with Hydraulic through Chunk | Ø 48mm |
| Spindle Head Type | A2-6 |
| Spindle Speed Range | 50-3000rpm |
| Spindle Shift Mode | Servo |
| Spindle Rated Torque | 72Nm |
| Main Moto Power | 11Kw |
| Spindle Moto Maximum Speed Range(30 Min) | 15Kw |
| Chunk Type | Hydraulic Solid (AUTOGRIP-Taiwan) |
| Chunk Size | Ø 200mm |
| Rapid Traverse Speed on X Axis | 16m/min |
| Rapid Traverse Speed on Z Axis | 20m/min |
| Servo Motor Torque on X Axis | 7.5Nm |
| Servo Motor Torque on Z Axis | 7.5Nm |
| X Axis Travel | 220mm |
| Z Axis Travel | 490mm |
| Guide Way Type | Linear Guide Way (HIWIN Taiwan) |
| Turret Type | 8 Station Tool Turret (PRAGATI) (Optional-12 Station Tool Turret) |
| Tool Change Time | 45° / 0.24Sec. |
| Turning Tool / Boring Bar Size | 25mm x 25mm / 040mm |
| Tail Stock Type | Hydraulic |
| Tail Stock Diameter/Travel | Ø88mm/85mm |
| Tail Stock Sleeve Taper | MT5 |
| Chips Conveyor (Optional) | Hinge Belt |
| Weight | 2800KG |
| Dimension (L*W*H) | 2610 / 3300*1930*1800mm |
Sileant Features
- 45 Degree slant bed structure, resin sand casting bed highly increase the rigidity & long term accuracy.
- Automatic hydraulic tail stock, Its high accurate, high effective and stable with hydraulic system. Simple and rigorous structure highly increase the durability and safety in production. It is specially designed for this machine.
- Integral sealed protection, the sealed design provides excellent water resistant and only make low sound when operating. Its more durable and protects all electric device from water, oil and all metal.
- Integral motor seat and guide way design highly increase the accuracy that may effected by installation.
- Streamline structure chip conveyer has beautiful appearance, its is high effective and conveys smoothly. The Overload protection ensures the stability and safety.
Standard Accessories
200mm Hydraulic Solid True Chuck, Hydraulic Tail Stock, Coolant System, 8-Station Tool Turret, Lubrication System
Optional Accessories
| Hydraulic Hollow Chuck-200mm | 40,000.00 |
| Chip Conveyor | 125,000.00 |
