BUS BAR

Model No

BB - 30M

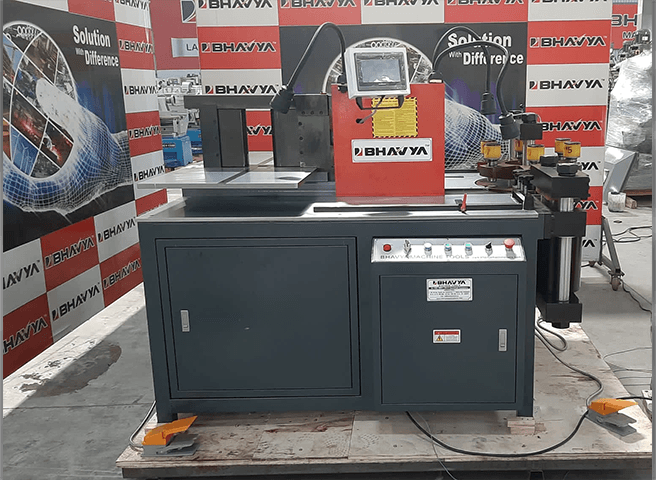

BB - 30NC
BB - 50NC
BB - 80NC

Get A Quote

Technical Specifications

Model		BB-30M	BB-30NC	BB-50NC	BB-80NC
Punching	Max. Punching Force (KN)	300	300	500	800
	Punching Diameter Range (MM)	Ø4.3-Ø25	Ø4.3-Ø25	Ø4.3-Ø34	Ø4.3-Ø34
	Max. Thickness (MM)	12	12	16	20
	Max. Width (MM)	160	160	250	300
Shearing / Cutting	Max. Shearing Thickness (MM)	12	12	16	20
Shearing / Cutting	Max. Shearing Width (MM)	160	160	250	300
Vertical Bending	Max. Bending Force (KN)	300	300	500	800
	Max. Thickness (MM)	12	12	16	20
	Max. Width (MM)	160	160	250	300
Horizontal Bending	Max. Width (MM)	100	100	120	250
	Max. Angle (Degree)	90°	90°	90°	90°
	Max. Thickness (MM)	12	12	16	20
Out Dimension		179014001420	179014001420	195015601390	206016001560
Power		3 x 4kw	3 x 4kw	3 x 5.5kw	3 x 7.5kw
CNC Precision	Bending Precision	±1°	±1°	±1°	±1°
CNC Precision	Repeat Bending Precision	±0.3°	±0.3°	±0.3°	±0.3°

*Specifications are subject to changed without prior notice.

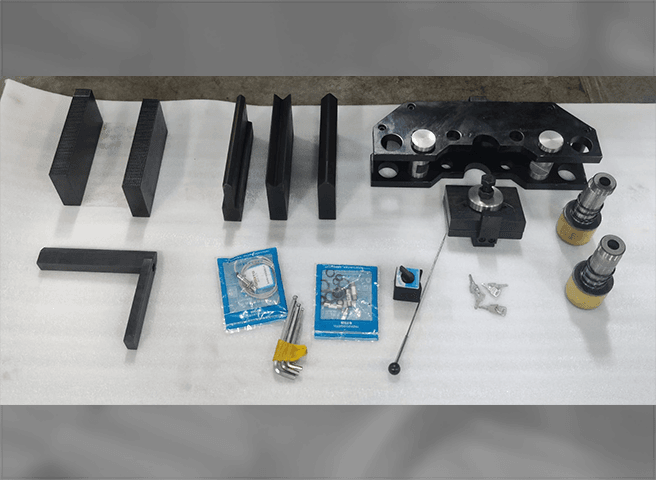

Accessories

Standard :

Main Drive Motor.
Separate Foot Switch For Each Station.
Eight Suitable Die & Punch On Punching Station.
Unhardened & Ungrounded Suitable Bending Tool.
Hardened & Grounded HCHCr Blade on Shearing Station.
Compact Hydraulic Power Pack With Built In Control Panel.
Guage Stopper On Shearing Station Bending Station & Punching Station.

Optional :

First Fill Of Oil.
High Speed Version.
Special Tools For Bending Station.
Special Tools For Punching Station.

Features

P&C Control System & Touch Screen HMI.
This Is A Highly Productive Machine Suiting To Growing Demand Of Industries.
International Quality Hydraulic & Electrical Components Ensure Maintenance Free Long Life.
The Bus Bar Bending, Cutting & Punching Unit Machine Is Technologically Advanced, Compact & Versatile Machine.
The Machine Is Designed To Cater The Requirement Of Bus Bar Preparation & Almost All Operations Are Included in One Machine.
The Machine Is Equipped With Three Different & Independent Stations For All These Stations Work Parallel To Contribute High Productivity Of Machine.

Photo Gallery

Siemens PLC Control System

Electrical (Schneider)

Separate Ele. Motor & Hydraulic Pump for each working station

Relief Valve (YUKEN)

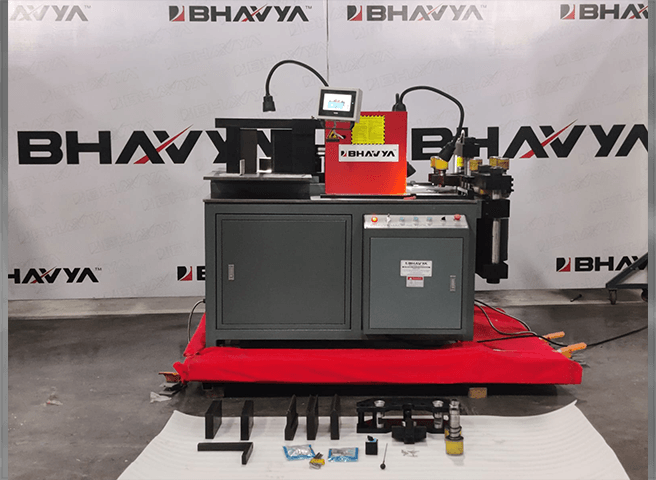

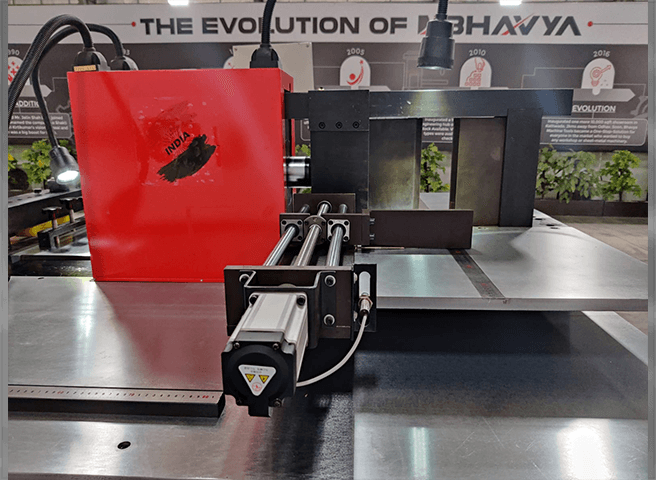

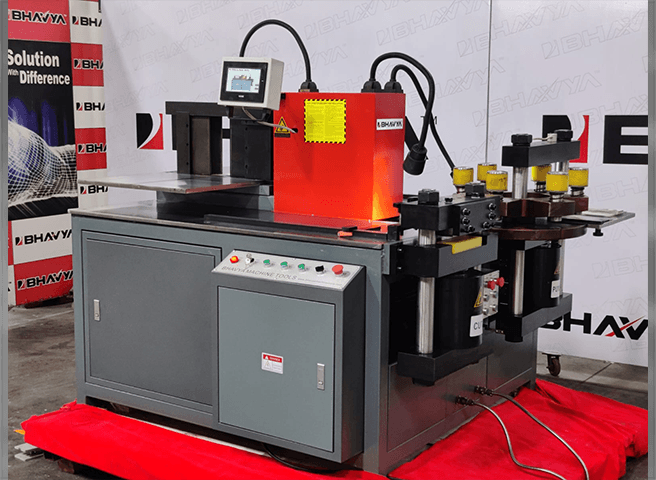

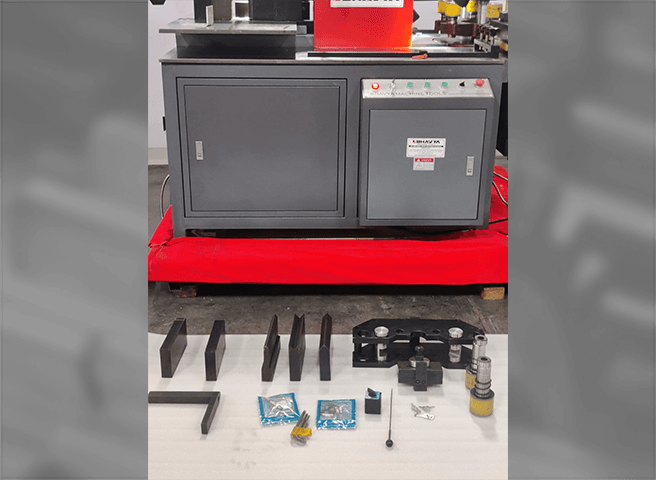

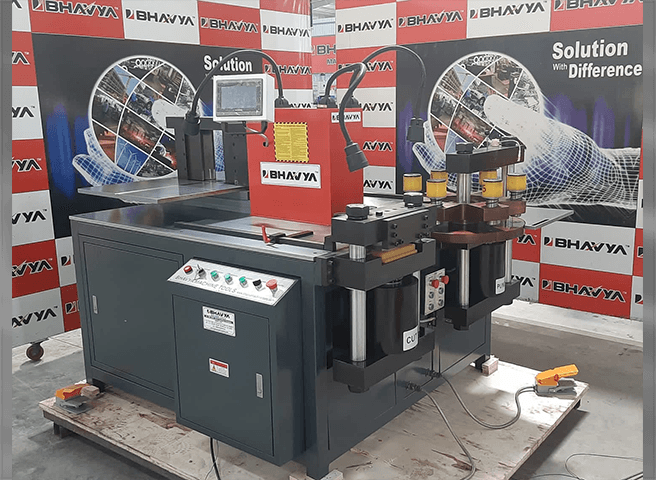

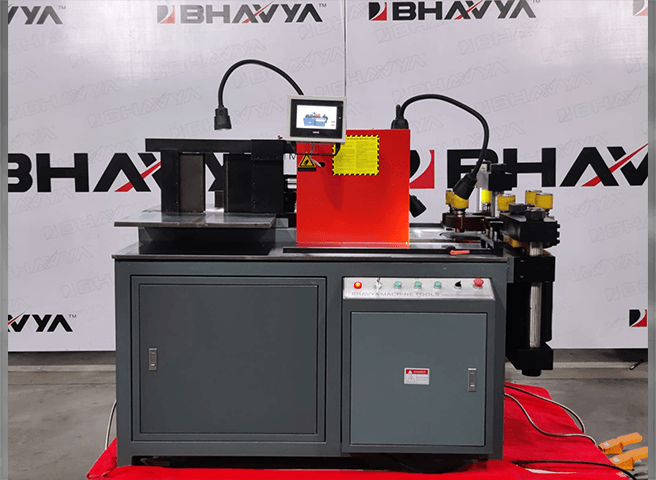

Bus Bar - 50NC

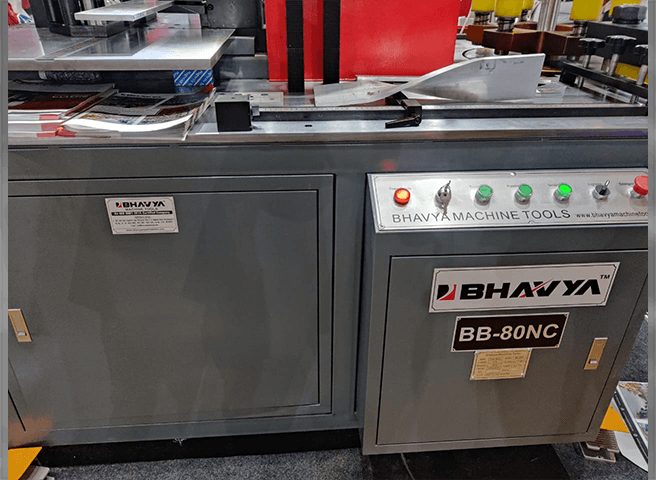

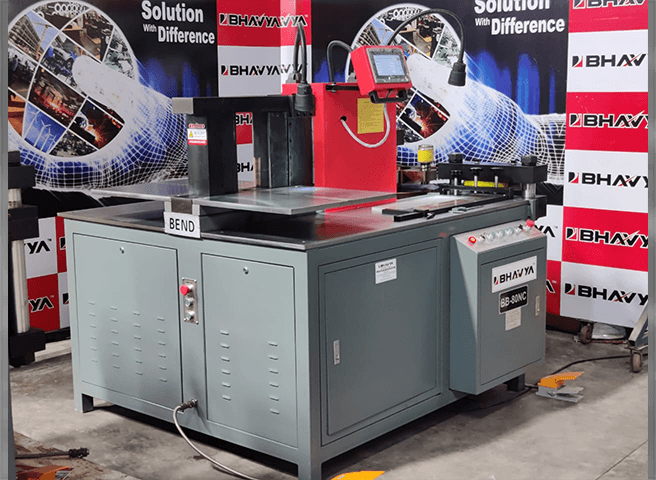

Bus Bar - 80NC
