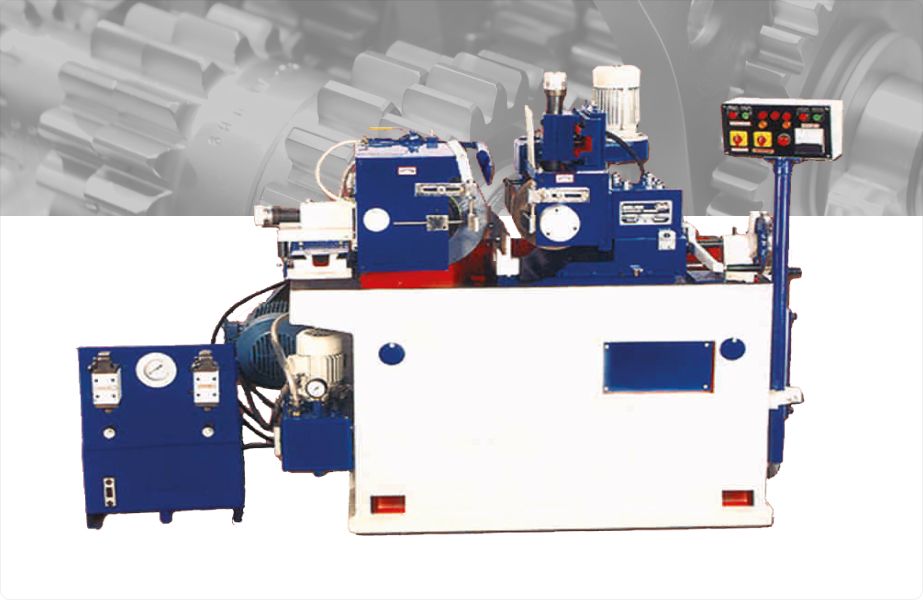

Centerless Grinding Machine SL Series

GRINDER

Model No

SL-75
SL-100
SL-150

Get A Quote

Technical Specifications

Model No	SL-75	SL-100	SL-150
Grinding Range Diameter	2-75mm	2-100mm	5-150mm
Grinding Wheel Size (ODxWxID)	350x100x127mm	350x150x127mm	500x200x304.8mm
Regulating Wheel Size (ODxWxID)	225x100x76.2mm	225x150x76.2mm	300x200x127mm
Max. Length in In Feed Grinding	100mm	150mm	200mm
Max. Length in Through Feed Grinding	300mm	250mm	200mm
Grinding Wheel Speed	1800rpm	1800rpm	1200rpm
Regulating Wheel Speed	20-40-60rpm	20-40-60rpm	Infinitely Variable
Grinding Wheel Motor	5 HP	7.5 HP	20 HP
Regulating Wheel Motor	1 HP	1 HP	3 HP
Coolant Pump Motor	0.15 HP	0.15 HP	0.50 HP
Hydraulic Power Pack (Dressing)	0.5 HP	0.5 HP	0.5 HP
Regulating Wheel Angle Tilting	5 Degree	5 Degree	5 Degree
Upper Slide Swiveling	3 Degree	3 Degree	3 Degree
Approx. Weight	1800kg	2000kg	4500kg
Approx. Dimensions (LxWxH)	1850x1100x1600mm	1850x1100x1600mm	2500x1700x1650mm

*Specifications are subject to changed without prior notice.

Accessories

Electric Control Panel
Coolant Tank with Pump
Grinding & Control Wheel Fitted With Flange
Standard Work Rest Blade

Diamond Dressing Holder With Diamond
Grinding Wheel Flange Puller
Wheel Flange Nut's Spanner

Features

Design: Designed to grind cylindrical parts at high production rates and close tolerances straight shoulders & taper parts can be ground with ecual ease suitable for hardened and unhardened steel, Brass, copper, aluminium, or any other materials.
Bed: A single block of cast iron with a proper brinell hardness greater material thickness and heavier rib design provide maximum rigidity for greater strength providing for vibration absorption even while the machine is utilized to its fullest exdent.
Grinding Wheel Head: The grinding wheel spindle is made of hardened and ground nickle chrome alloy steel. It runs in oil chamber on Taper roller bearing or on bush as required. They are sturdy and strong enough to permit heavy duty grinding at high speeds and assure superior surface firish & accuracy.

Photo Gallery

Work Piece Samples

Wheel Balancing Stand

Oil Circulating Unit

Profile Truing Device

Long Bar Feeding Attachment

Grinding Process
