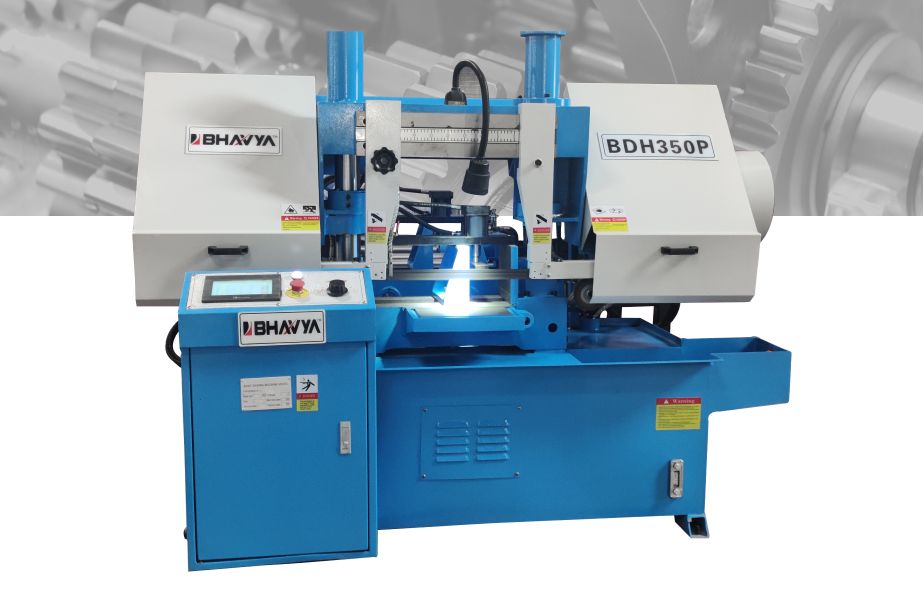

Double Column Fully-Automatic PLC Control Series

Double Column Fully-Automatic PLC Control Series

BANDSAW

Model No

BDH-280P
BDH-350P
BDH-400P

Get A Quote

Technical Specifications

Model No	BDH280P	BDH350P	BDH400P
Cutting Capacity Round	280mm	350mm	400mm
Cutting Capacity Square	280x280mm	350x350mm	400x400mm
Blade Size	3505x27x0.9mm	4115x34x1.1mm	5000x41x1.3mm
Blade Speed	27, 45, 69m/min	27, 45, 69m/min	27, 45, 69m/min
Clamping Type	Hydraulic	Hydraulic	Hydraulic
Material Feeding	Automatic (0-500mm)	Automatic (0-500mm)	Automatic (0-500mm)
Main Motor Power	3.0kw	4.0kw	4.0kw
Hydraulic Motor Power	0.75kw	0.75kw	0.75kw
Coolant Motor	0.04kw	0.04kw	0.125kw
Power Supply	415V-50Hz-3Phase	415V-50Hz-3Phase	415V-50Hz-3Phase
Overall Dimension	1860x2400x1400mm	2000x2500x1500mm	2500x2500x1600mm

*Specifications are subject to changed without prior notice.

Accessories

Saw Blade
Tool Kit
Coolant Systems
Machine Lamp

Blade Tensioning Wrench
Adjustable Bar Support Stand
Operating & Instruction Manual

Features

Stress Relieved Fabricated Steel Structure
Hard Chrome Plated Ground Column
Automatic Height Adjustment for Saw Frame
Variable Pressure Control for Cutting Feed
Auto Cutting Stop
Push Button Type Operating Panel Board
Heavy Duty Worm Gear Box
Moveable Blade Support Guide
Manual Blade Tensioning Arrangement
Material Feeding Manually
Sawing mode changes, flexible, manual & automatic Combined
PLC controller complete automatic sawing process
Job Clamping Hydraulically

Photo Gallery

BDH 350P

BDH 700P

Videos

Double Column Fully Automatic Horizontal Bandsaw Machine (BDH700P)
