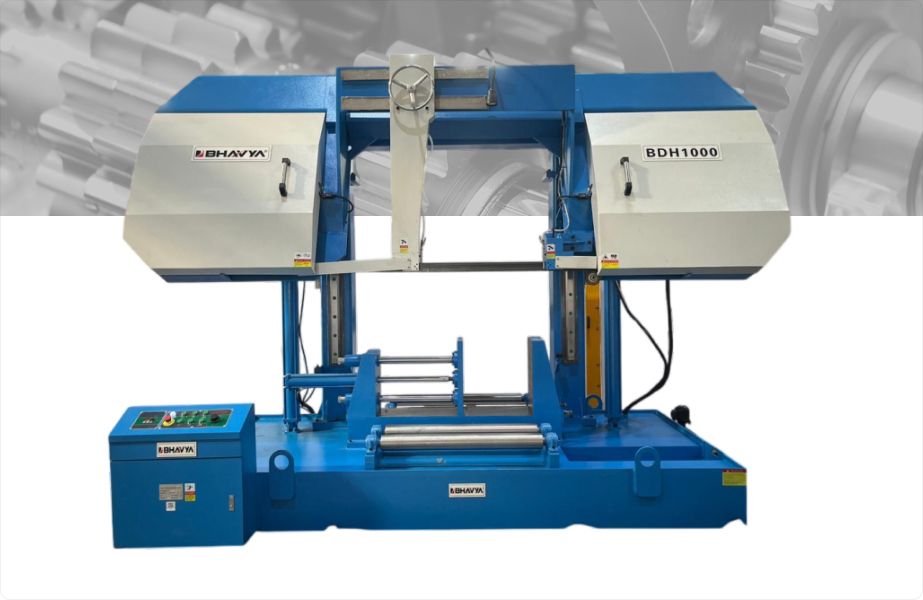

Double Column Semi-Automatic Series BDH (600A-1000A)

BANDSAW

Model No

BDH-600A
BDH-700A
BDH-800A
BDH-1000A

Get A Quote

Technical Specifications

Model No	BDH-600A	BDH-700A	BDH-800A	BDH-1000A
Cutting Capacity (Round)	600mm	700mm	800mm	1000mm
Cutting Capacity Square	600x600mm	700x700mm	800x800mm	1000x1000mm
Blade Size	6640x41x1.3mm	7205x54x1.6mm	8820x67x1.6mm	9820x67x1.6mm
Blade Speed	27, 45, 69m/min.	27, 45, 69m/min.	27, 45, 69m/min.	15-60m/min
Clamping Type	Hydraulic	Hydraulic	Hydraulic	Hydraulic
Main Motor Power	5.5kW	5.5kW	7.5kW	11kW
Hydraulic Motor Power (kw)	1.1 kW	1.1 kW	2.2kW	3.75kW
Coolant Motor Power	0.125kw	0.125kw	0.125kw	0.09kW
Power Supply	415V-50Hz-3Phase	415V-50Hz-3Phase	415V-50Hz-3Phase	415V-50Hz-3Phase
Overall Dimension	3150x1300x2100mm	3500x1800x2500mm	4130x2150x2500mm	4560x2170x3040mm

*Specifications are subject to changed without prior notice.

Accessories

Saw Blade
Tool Kit
Coolant Systems
Machine Lamp

Blade Tensioning Wrench
Adjustable Bar Support Stand
Operating & Instruction Manual

Features

Stress Relieved Fabricated Steel Structure
Hard Chrome Plated Ground Column
Automatic Height Adjustment for Saw Frame
Variable Pressure Control for Cutting Feed
Auto Cutting Stop
Push Button Type Operating Panel Board
Heavy Duty Worm Gear Box
Moveable Blade Support Guide
Manual Blade Tensioning Arrangement
Material Feeding Manually
Job Clamping Hydraulically
