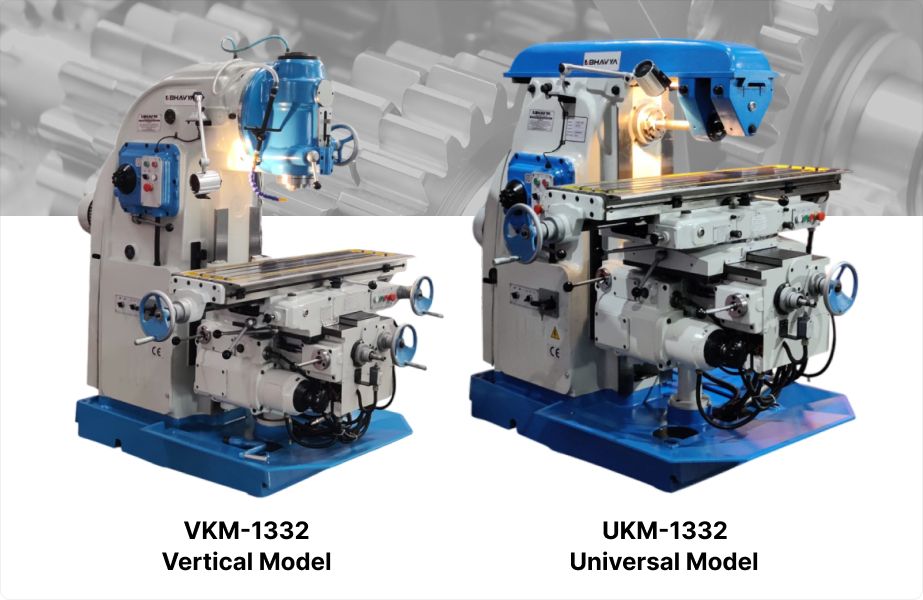

Extra Heavy Duty All Geared Milling Machine

MILLING

Model No

VKM-1332
VKM-1740
UKM-1332
UKM-1740

Get A Quote

Technical Specifications

Model	Unit	VKM-1332	VKM-1740	UKM-1332	UKM-1740
Table Size	mm	1320 x 320	1700 x 400	1320 x 320	1700 x 400
Number/Width/Distance of T-Slot	mm	3-18-70	3-18-90	3-18-70	3-18-400
Max. Load On Table	kg	500	800	500	800
Longitudinal Travel - X Axis	mm	700/680	900/880	700/680	900/880
Cross Travel - Y Axis	mm	255/240	315/300	255/240	315/300
Vertical Travel - Z Axis	mm	370/350	385/365	370/350	385/365
Dist. From Spindle Axis to Vertical Guideway	mm	350	450	-	-
Dist. From Spindle Nose to Table Surface	mm	60-430	130-515	30-350	30-410
Spindle Taper		ISO-50	ISO-50	ISO-50	ISO-50
Number of Spindle Speed		18	18	18	18
Range of Spindle Speed	rpm	30-1500	30-1500	30-1500	30-1500
Spindle Quill Travel	mm	70	85	-	-
Max. Swivel Angle of Milling Head		±45°	±45°	±45°	±45°
Feed Range - Longitudinal	mm/min.	23.5-1180	23.5-1180	23.5-1180	23.5-1180
Feed Range - Cross	mm/min.	15-786	23.5-1180	23.5-1180	23.5-1180
Feed Range - Vertical	mm/min.	8-394	8-394	8-394	8-394
Rapid Speed - Longitudinal	mm/min.	2300	2300	2300	2300
Rapid Speed - Cross	mm/min.	1533	2300	2300	2300
Rapid Speed - Vertical	mm/min.	770	770	770	770
Motor Power	kw	7.5	11	7.5	11
Feed Motor Power for X & Y Axis	kw	1.5	3	1.5	3
Dimension (Approx.) (L x W x H)	mm	2294 x 1770 x 1980	2560 x 2130 x 2298	2294 x 1770 x 1665	2560 x 2130 x 1800
Weight (Approx.)	kg	2800	4250	2650	3850

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Vertical ISO-50
Draw Bar
Cutter Arbor
Mill Chuck

Tapper Sleeve
Oil Gun
Foundation Bolt
Spanner Set

Optional :

Boring Head
Rotary Table Horizontal & Vertical (With Indexing Device)

Angle Plate
DRO for X,Y,Z Axis
