V-Belt Drive Lathe Machine

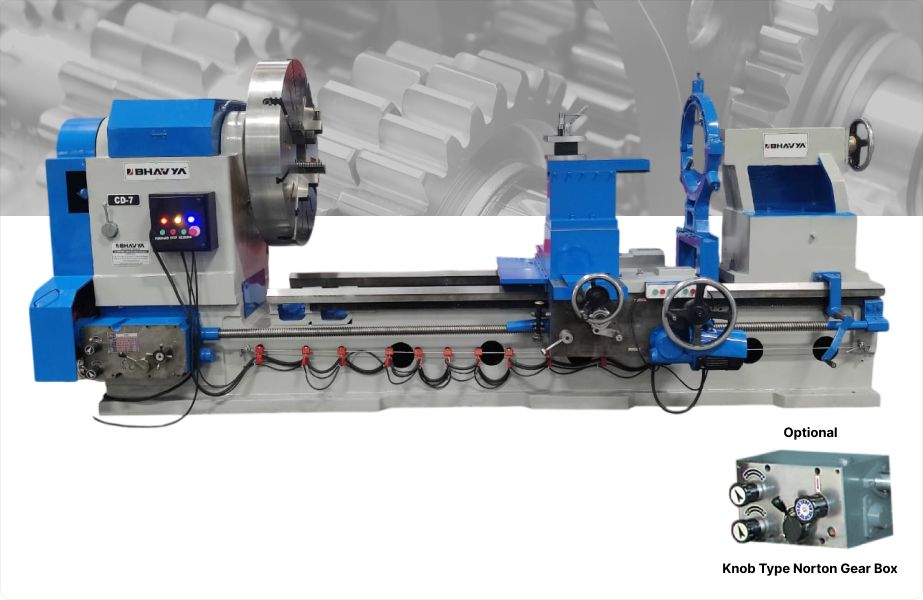

Extra Heavy Duty Lathe (CD Series)

Extra Heavy Duty Lathe (CD Series)

Back

High Tensile

Casting

Head Stock

Latest Design

Bed & Spindle are

Hardened & Ground

LATHE

Model No

CD - 4
CD - 5
CD - 6
CD - 7
CD - 8
CD - 10

Get A Quote

Technical Specifications

Model	CD-4	CD-5	CD-6	CD-7	CD-8	CD-10
Height Of Centre(mm)	500	550	600	750	800	900
Width Of Bed (mm)	500	550	600	750	800	900
Max. Swing (mm)
Over Bed	1000	1100	1200	1500	1600	1800
Over Slide	700	800	900	1200	1300	1500
In Gap	1280	1360	1450	1750	1850	2050
Spindle
Brose (mm)	100	100	125	125	125	125
Nose	6 TPI	6 TPI	6 TPI	6 TPI	6 TPI	6 TPI
Speed-8(R.P.M)	30 TO 250	30 TO 250	30 TO 250	10 TO 150	10 TO 150	10 TO 150
Travel (mm)
Cross Slide	500	500	500	500	500	500
Top Slide	250	250	250	250	250	250
Other
Lead Screw TPI	2 TPI	2 TPI	2 TPI	2 TPI	2 TPI	2 TPI
Tail Stock Sleeve	MT-5	MT-5	MT-5	MT-5	MT-5	MT-5

Admit Between Centers (In mm)

Size	CD-4	CD-5	CD-6	CD-7	CD-8	CD-10
9'	1400	1400	1350	-	-	-
10'	1700	1700	1650	1550	1550	1550
12'	2300	2300	2250	2250	2250	2250
14'	2900	2900	2850	2750	2750	2750
16'	3500	3500	3450	3350	3350	3350
18'	4100	4100	4050	3950	3950	3950
20'	4700	4700	4650	4550	4550	4550
22'	5300	5300	5250	5150	5150	5150
24'	5900	5900	5950	5950	5950	5950
30'	6500	6500	6500	6500	6500	6500

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Chuck Plate
Gear Set
Center Adaptor
Dead Centers

Dial Indicator
Square Tool Post
Tool Post Key

Optional :

Steady Rest
Follow Rest
Face Plate Electrical Fittings
True Chuck & Dog Chuck
Quick Change Tool Post Tapper Turning Attachment
Knob Type Oil Bath Norton Gear Box

Coolant Pump with Tank & Fittings Machine Lamp
Rear Tool Post
Key Way Milling Attachment
Tool Post Grinder
Plunger Type Norton Gear Box

Features

High Tensile Casting
Head Stock Latest Design
Bed & Spindle are Hardened & Ground

Photo Gallery

CD - 7 - 34'

Videos

Extra Heavy-Duty Lathe Machines for Exceptional Functionality

CD Series Lathe Machine

CD Series Lathe Machine
