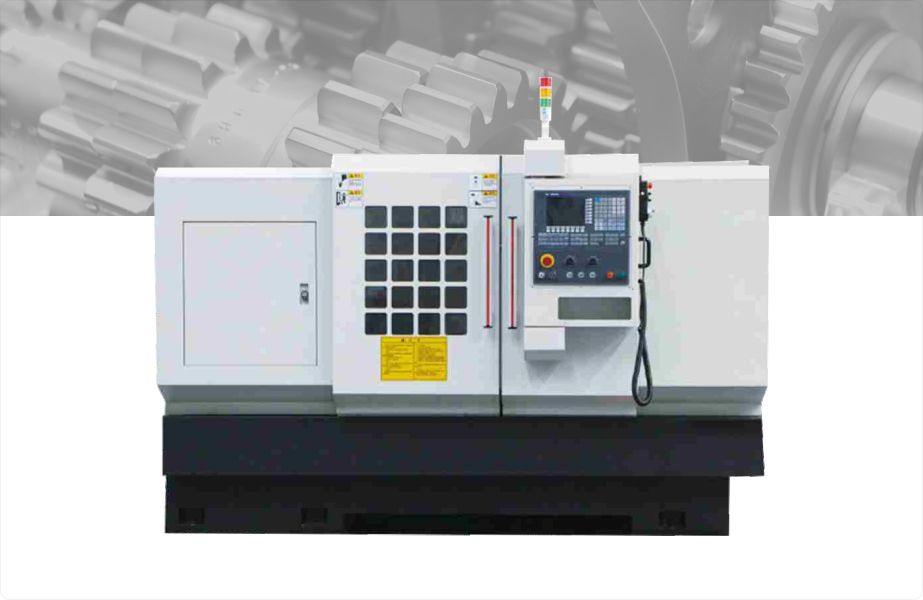

Flat Bed CNC Lathe CNC (500 - 560)

Back

CNC LATHE

Model No

CNC 500
CNC 560

Get A Quote

Technical Specifications

Model	Specification	Unit	CNC500	CNC500	CNC500	CNC560
Capacity	Swing Over Bed	mm	500	500	500	560
	Swing Over Cross Slide	mm	270	270	270	300z
	Distance Between Centers (mm)	mm	1000/1500/2000	1000/1500/2000	1000/1500/2000	1000/1500/2000
	Guideway width (mm)	mm	400	400	400	460
	Max. Load Capacity	T	1	1	1	2
Spindle	Spindle Bore	mm	82	105	160	82
	Spindle Bore Taper	-	Metric Ø 90/MT5	-	-	Metric Ø 90/MT5
	Spindle Nose Type	-	C8	-	-	C8
	Spindle Speed Steps	-	3 steps	3 steps	3 steps	3 steps
	Spindle Speed Range	rpm	80-1500	80-1000	80-800	80-1500
	Chuck	mm	Ø 250 3-jaw manual	Ø 320 3-jaw manual	Ø 400 3-jaw manual	Ø 250 3-jaw manual
Turret	Turret/Tool Post	-	NC Turret 4 Position	NC Turret 4 Position	NC Turret 4 Position	NC Turret 4 Position
Turret	Tool Shank Size	mm	25x25	25x25	25x25	25x25
Feed	X Axis Travel	mm	270	270	270	320
	Z Axis Travel	mm	850/1350/1850	850/1350/1850	850/1350/1850	850/1350/1850
	X Axis Rapid Traverse	mm/min	4000	4000	4000	6000
	Z Axis Rapid Traverse	mm/min	6000	6000	6000	8000
Tailstock	Tailstock Quill Diameter	mm	Ø 75	Ø 75	Ø 75	Ø 75
	Tailstock Quill Taper	-	MT5	MT5	MT5	MT5
	Tailstock Quill Travel	mm	150	150	150	150
Motor	Main Spindle Motor	kw	7.5	7.5	7.5	7.5
Motor	Coolant Pump Motor	kw	0.125	0.125	0.125	0.125
Dimension	Width x Height	mm	1600 x 1600	1650 x 1700	1650 x 1700	1750 x 1850
Dimension	Length	mm	2700/3200/3700	2950/3450/3950	2950/3450/3950	3000/3500/4000
Weight	Net weight	T	2.7/3.0/3.4	2.7/3.0/3.4	2.7/3.0/3.4	3.1/3.4/3.8

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Siemens Controller
NC Turret
Automatic Lubrication

Coolant Pump
Semi-Shield

Optional :

Full shield
Hydraulic Or Power Turret
Pneumatic Or Hydraulic Chuck

Hydraulic tailstock
Fanuc Or Other Brand CNC Controller

Features

One-piece bed adopts high strength iron to ensure rigidity and precision.
Ultrasonic frequency quenched guideways ensure good wear-resistance.
Carriage and guide-way contact surface use Turcite B to maintain accuracy.

CNC560 Special Features

This model adopts double V guide-ways to ensure processing stabilities.
Application of mid-position lead-screw installation ensure high accuracy.
Guide-way and lead-screw adopt full protect cover to avoid chip damage.

This series CNC lathe is universal standard automatic machining equipment or metal processing, suitable to process shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, his series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
