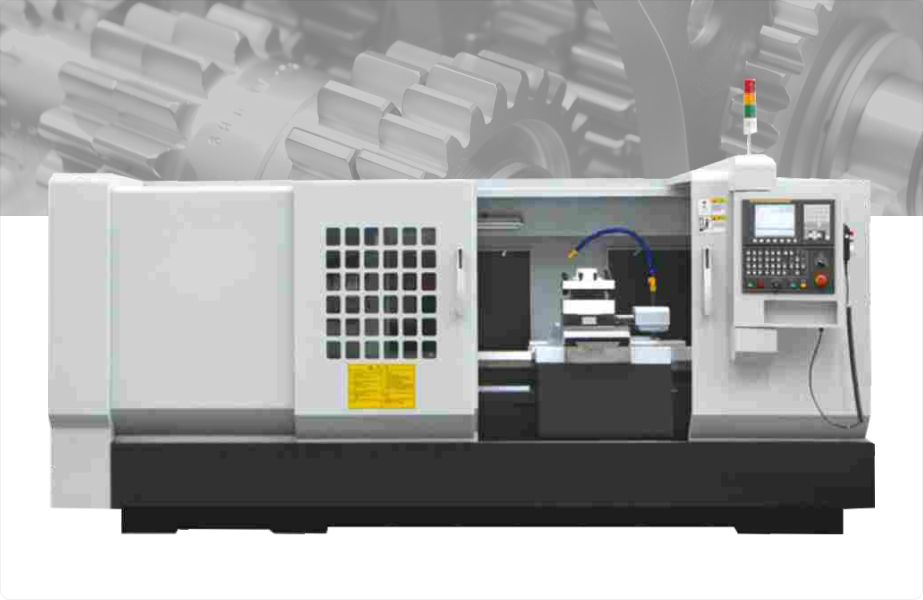

Flat Bed CNC Lathe CNC (800A - 1100A)

Back

CNC LATHE

Model No

CNC 800A
CNC 1100A

Get A Quote

Technical Specifications

Model	Specification	Unit	CNC800A	CNC1100A
Capacity	Swing Over Bed	mm	800	1100
	Swing Over Cross Slide	mm	480	680
	Distance Between Centers (mm)	mm	1500/2000/3000/4000/5000/6000	1500/2000/3000/4000/5000/6000
	Guideway width (mm)	mm	600	600
	Max. load capacity	T	4	4
Spindle	Spindle Bore	mm	104	104
	Spindle Bore Taper	-	Metric Ø 120/MT5	Metric Ø 120/MT5
	Spindle Nose Type	-	C 11	C 11
	Spindle Speed Steps	-	3 steps \| 4 steps	3 steps \| HYD. 4 steps
	Spindle Speed Range	rpm	10-800 \| 17-800	10-800 \| 17-800
	Chuck	mm	Ø 400 3-jaw manual	Ø 400 3-jaw manual
Turret	Turret/Tool Post	-	NC Turret 4 Position	NC Turret 4 Position
Turret	Tool Shank size	mm	32 x 32	40 x 40
Feed	X Axis Travel	mm	420	520
	Z Axis Travel	mm	1250/1750/2750	1250/1750/2750
	X Axis Rapid Traverse	mm/min	4000	4000
	Z Axis Rapid Traverse	mm/min	6000	6000
Tailstock	Tailstock Quill Diameter	mm	Ø 120	Ø 120
	Tailstock Quill Taper	-	MT6	MT6
	Tailstock Quill Travel	mm	250	250
Motor	Main Spindle Motor	kw	15	15
Motor	Coolant Pump Motor	kw	0.125	0.125
Dimension	Width x Height	mm	1950 x 1900	1900 x 2100
Dimension	Length	mm	4000/4500/5500/6500/7500/8500	4000/4500/5500/6500/7500/8500
Weight	Net weight	T	5.0/5.4/6.1/6.8/7.5/8.2	5.4/5.8/6.5/7.2/7.9/8.6

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Siemens Controller
NC Turret
Automatic Lubrication

Coolant Pump
Semi-Shield

Optional :

Fanuc Or Other Brand CNC Controller
Hydraulic Or Power Turret
Pneumatic Or Hydraulic Chuck

Hydraulic tailstock
Full shield

Features

One-piece bed adopts high strength iron to ensure rigidity and precision.
Ultrasonic frequency quenched guideways ensure good wear-resistance.
Carriage and guide-way contact surface use Turcite B to maintain accuracy.

This series CNC lathe is universal standard automatic machining equipment or metal processing, suitable to process shaft and plate workpiece, with the main characters such as reliable structure, easy operating and high accuracy, his series lathe machine is mainly used for turning the internal and external cylindrical surface, conical surface and other rotating surfaces, as well as turning various type of threads etc.
