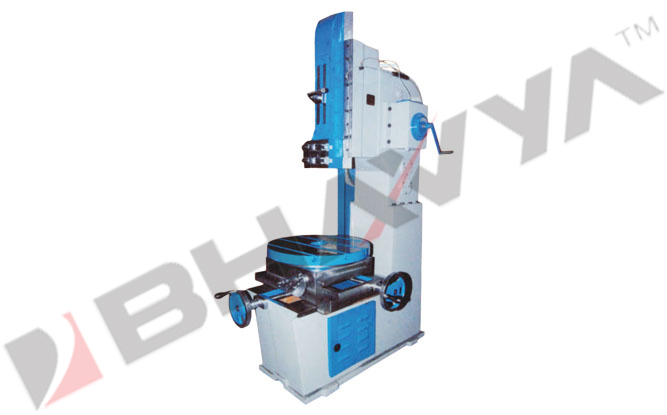

Heavy Duty Slotting Machine(Extra Heavy Duty)

Model : BHS-12E,...

Technical Specifications

Photos Gallery

MODEL	BHS-12E	BHS-14E	BHS-16E	BHS-18E	BHS-24E	BHS-30E	BHS-36E	BH5-40E
Stroke	12"	14"	16"	18"	24"	30"	36"	40"
Rotary Table	22"	22"	22"	24"	30"	36"	40"	48"
Longitudinal Movement	16"	17"	18"	22"	24"	26"	28"	30"
Cross movement	13"	14"	15"	18"	20"	20"	20"	22"
Cutting Speed of Ram per Minute	20-50-80	20-50-80	15-45-65	15-45-65-85	15-45-65-85	15-45-65-85	15-45-65-85	15-45-65-85
Ram Adjustment	16"	17"	18"	20"	22"	24"	24"	26"
Throat Depth	20"	20"	20"	20"	24"	28"	30"	32"
Main Motor Power	3 HP	3 HP	3 HP	5 HP	7. 5 HP	7. 5 HP	10 HP	10 HP
Distance from the tool to Main column	18"	18"	20"	22"	24"	26"	28"	30"
