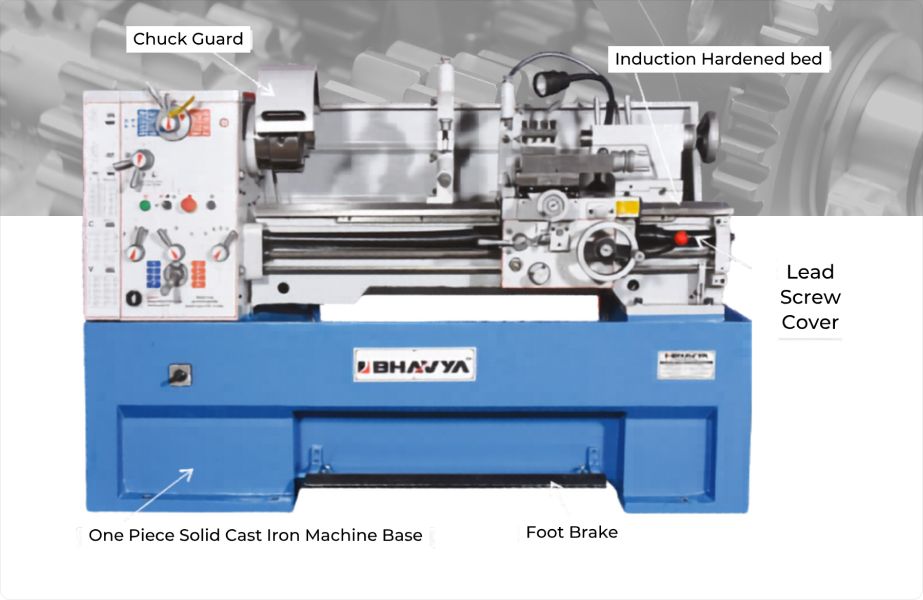

High Speed All Geared Lathe HST Series

High Speed All Geared Lathe HST Series

High Speed All Geared Lathe HST Series

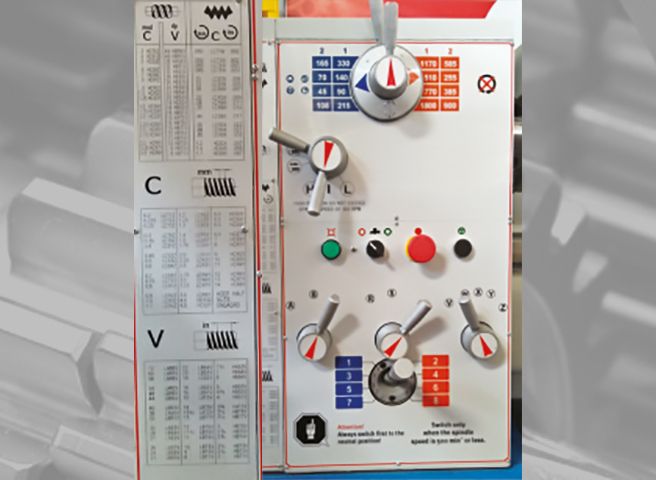

LATHE

Model No

HST41
HST46
HST51
HST56
HST66
HST80

Technical Specifications

Model	HST41	HST46	HST51	HST56	HST66	HST80
Center Height	205mm	230mm	255mm	280mm	330mm	400mm
Swing Over Bed	205mm	460mm	510mm	560mm	660mm	800mm
Swing Over Cross Slide	255mm	270mm	305mm	355mm	440mm	570mm
Swing in Gap	580mm	690mm	735mm	785mm	900mm	1035mm
Length Of Gap	250mm	165mm	270mm	270mm	340mm	340mm
Width Of Bed	250mm	300mm	350mm	350mm	400mm	400mm
Admits Between Centre	1000mm	1000/1500/2000mm	1000/1500/2000/3000mm	1000/1500/2000/3000mm	1500/2000/3000mm	1500/2000/3000mm
Spindle Nose	D1-6	D1-6	D1-8	D1-8	D1-8	D1-8
Spindle Bore	52mm	58mm	80mm	80mm	105mm	105mm
Taper Of Spindle Nose	MT-6	MT-6	MT-6	MT-6	MT-6	MT-6
Spindle Speed	16 / 45-1800 rpm	12 /25-2000 rpm	12 / 25-1600 rpm	12 / 25-1600 rpm	16 / 25-1600 rpm	16 / 25-1600 rpm
Compound Rest Travel	140mm	128mm	130mm	130mm	230mm	230mm
Cross Slide Travel	210mm	285mm	315mm	315mm	365mm	420mm
Lead Screw Thread	4-ΤΡΙ	6mm/4-ΤΡΙ	6mm/4-ΤΡΙ	6mm/4-ΤΡΙ	12mm/2-ΤΡΙ	12mm/2-ΤΡΙ
Tool Shank Size	20x20mm	25x25mm	25x25mm	25x25mm	30x30mm	30x30mm
Longitudinal Feeds	17/0.05-1.7mm/rev	0.031-1.7mm/rev	35/0.059-1.646mm/rev	35/0.059-1.646mm/rev	25/0.044-1.48mm/rev	25/0.044-1.48mm/rev
Cross Feeds	0.025-0.85mm/rev	0.014-0.784mm/rev	35/0.020-0.573mm/rev	35/0.020-0.573mm/rev	25/0.033-0.74mm/rev.	25/0.033-0.74mm/rev.
Metric Thread	42/0.2-14mm	41/0.1-14mm	47/0.1-14mm	47/0.1-14mm	54/0.45-120mm	54/0.45-120mm
Imperial Thread	45/2-72 TPI	60/2-112 TPI	60/2-112 TPI	60/2-112 TPI	54/7/16-80 TPI	54/7/16-80 TPI
Diametrical Thread	21/8-44 DP	50/4-112 DP	50/4-112 DP	50/4-112 DP	42/7/8-160 DP	42/7/8-160 DP
Module Thread	18/0.3-3.5 MP	34/0.1-7 MP	39/0.1-7 MP	39/0.1-7 MP	46/0.25-60 MP	46/0.25-60 MP
Tail Stock Quill Diameter	50mm	60mm	75mm	75mm	85mm	85mm
Tail Stock Quill Travel	120mm	130mm	180mm	180mm	235mm	235mm
Tail Stock Quill Taper	MT-4	MT-4	MT-5	MT-5	MT-5	MT-5
Main Motor Power	2.2/3.3 Kw(3/4.5 HP)3 PH	5.5 Kw	7.5 Kw	7.5 Kw	7.5 Kw	7.5 Kw
Coolant Pump Power	0.1 Kw(1/8 HP) 3PH	0.1 KW	0.1 KW	0.1 KW	0.1 KW	0.1 KW
Overall Dimensions (LxWxH)	1940x850x1320mm	2200x1080x1370mm 2750x1080x1370mm 3250x1080x1370mm	2390x1150x1430mm 2840x1150x1430mm 3340x1150x1430mm 4340x1150x1430mm	2390x1150x1460mm 2840x1150x1460mm 3340x1150x1460mm 3340x1150x1460mm	3210x1230x1600mm 3710x1230x1600mm 4710x1230x1600mm	3210x1230x1670mm 3710x1230x1670mm 4710x1230x1670mm
Net Weight	1060Kgs	1645Kgs 1810Kgs 1965Kgs	2070Kgs 2160Kgs 2435Kgs 2805Kgs	2195Kgs 2285Kgs 2560Kgs 2930Kgs	3065Kgs 3345Kgs 3710Kgs	3175Kgs 3455Kgs 3820Kgs

*Specifications are subject to changed without prior notice.

Accessories

HST41

Standard :

200mm X 3 Jaw Self-Centering Chuck
250mm X 4-Jaw Independent Chuck
Steady Rest (10-130 mm)
Follow Rest (10-100 mm)
Face Plate (350mm dia)
Toolbox

Coolant System
Machine Lamp
Centres
Reduction Sleeves
Changing Gears
Machine Base
Foot Brake

Optional :

Taper Turning Attachment
Key Way Milling Attachment
½” Drill Chuck with Socket
American Type Quick Change Tool Post with 3 Tools Holder

Revolving Center MT-4
2 Axis DRO (Digital Read Out) Unit with High Precision Scales & Fittings
6” Capacity Tool Post Grinder with 1 HP 3 Phase Electrical Motor

HST46

Standard :

250mm X 3 Jaw Self-Centering Chuck
300mm X 4-Jaw Independent Chuck
Steady Rest (13-152 mm)
Follow Rest (13-80 mm)
Face Plate (350mm dia)
Toolbox

Coolant System
Machine Lamp
Centres
Reduction Sleeves
Changing Gears
Machine Base
Foot Brake

Optional :

Taper Turning Attachment
Key Way Milling Attachment
½” Drill Chuck with Socket
American Type Quick Change Tool Post with 3 Tools Holder

Revolving Center MT-4
2 Axis DRO (Digital Read Out) Unit with High Precision Scales & Fittings
6” Capacity Tool Post Grinder with 1 HP 3 Phase Electrical Motor

HST51-56

Standard :

315mm X 3 Jaw Self-Centering Chuck
350mm X 4-Jaw Independent Chuck
Steady Rest (19-165 mm)
Follow Rest (16-95 mm)
Face Plate 450mm Dia
Toolbox

Coolant System
Machine Lamp
Centres
Reduction Sleeves
Changing Gears
Machine Base
Foot Brake

Optional :

Taper Turning Attachment
Key Way Milling Attachment
½" Drill Chuck with Socket
American Type Quick Change Tool Post with 3 Tools Holder

Revolving Center MT-5
2 Axis DRO (Digital Read Out) Unit with High Precision Scales & Fittings
8" Capacity Tool Post Grinder with 1 HP 3 Phase Electrical Motor

HST66-80

Standard :

315mm X 3 Jaw Self-Centering Chuck
400mm X 4-Jaw Independent Chuck
Steady Rest (20-190 mm)
Follow Rest (20-130 mm)
Face Plate 450mm Dia
Toolbox

Coolant System
Machine Lamp
Centres
Reduction Sleeves
Changing Gears
Machine Base
Foot Brake

Optional :

Taper turning attachment
Key way milling attachment
½” Drill Chuck with socket
American Type Quick change tool post with 3 tools holder

Revolving center MT-5
2 Axis DRO (DIGITAL READ OUT) unit with High Precision Scales & fittings
10” Cap Tool post grinder with 1.5 HP 3 Phase electrical Motor
