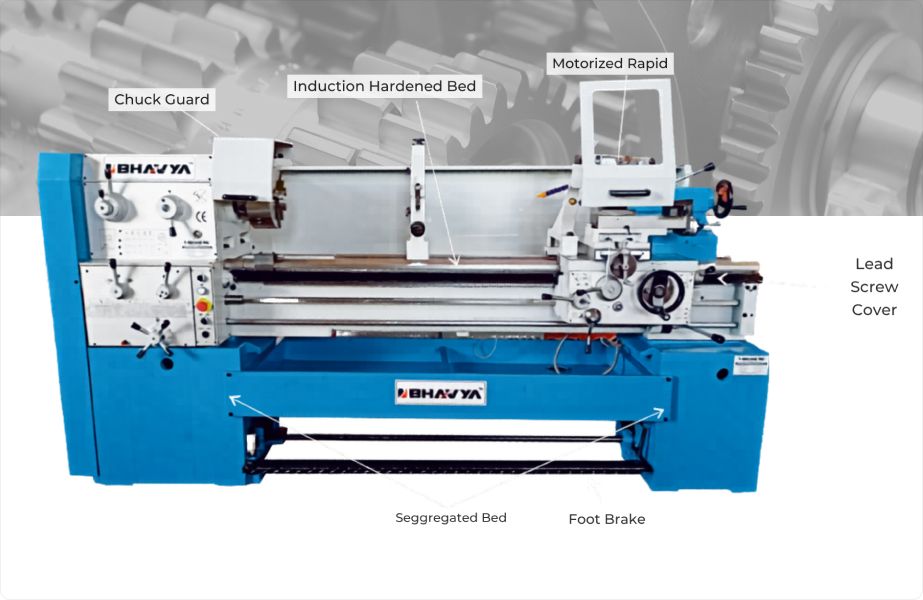

High Speed All Geared Lathe HSTY - (66-80)

LATHE

Model No

HSTY 66B
HSTY 66C
HSTY 80B
HSTY 80C

Get A Quote

Technical Specifications

Model	HSTY 66B	HSTY 66C	HSTY 80B	HSTY 80C
Center Height	330 mm	330 mm	400 mm	400 mm
Swing Over Bed	660 mm	660 mm	800 mm	800 mm
Swing Over Cross Slide	420 mm	420 mm	560 mm	560 mm
Swing In Gap	870 mm	870 mm	1010 mm	1010 mm
Length Of Gap	230 mm	205 mm	230 mm	230 mm
Width Of Bed	405 mm	405 mm	405 mm	405 mm
Admit Between Centers	1000/1500/2000/3000 mm	1000/1500/2000/3000 mm	1000/1500/2000/3000 mm	1000/1500/2000/3000 mm
Spindle Nose	D1-8	01:20	D1-8	D1:20
Spindle Bore	82 mm	105 mm	82 mm	105 mm
Spindle Speed	24/9-1600 rpm	12/36-1600 rpm	24/9-1600 rpm	12/36-1600 rpm
Compound Rest Travel	145 mm	145 mm	145 mm	145 mm
Cross Slide Travel	360 mm	360 mm	360 mm	360 mm
Lead Screw Thread
Tool Shank Size	25x25 mm	25x25 mm	25x25 mm	25x25 mm
Range Of Longitudinal Feeds
Longitudinal Feeds	0.028-6.42 mm/rev	0.063-2.52 mm/rev	0.028-6.42 mm/rev	0.063-2.52 mm/rev
Range Of Cross Feeds
Cross Feeds	0.012-2.73 mm/rev	0.027-1.07 mm/rev	0.012-2.73 mm/rev	0.027-1.07 mm/rev
Rapid Speed Of Carriage	5000 mm/min	5000 mm/min	5000 mm/min	5000 mm/min
Metric Thread	0.5-225 mm (48)	1-14 mm (22)	0.5-225 mm (48)	1-14 mm (22)
Imperial Thread	1/8-72ΤΡΙ (46)	2-28ΤΡΙ (24)	1/8-72ΤΡΙ (46)	2-28ΤΡΙ (26)
Diametrical Thread	1/4-56DP (45)	4-56DP (24)	1/4-56DP (45)	4-50DP (24)
Module Thread	0.5-112MP (42)	0.5-7MP (18)	0.5-112MP (42)	0.5-7MP (18)
Tail Stock Quill Diameter	75 mm	75 mm	75 mm	75 mm
Tail Stock Quill Travel	150 mm	150 mm	150 mm	150 mm
Tail Stock Quill Taper	MT-5	MT-5	MT-5	MT-5
Main Motor Power	7.5 kw	7.5 kw	7.5 kw	7.5 kw
Coolant Pump Power	0.1 kw	0.1 kw	0.1 kw	0.1 kw
Rapid Speed Motor Power	0.12 kw	0.37 kw	0.12 kw	0.12 kw
Overall Dimensions (L x W x H)	2450x1150x1800 mm	2450x1150x1800 mm	2450x1150x1800 mm	2450x1150x1800 mm
	2950x1150x1800 mm	2950x1150x1800 mm	2950x1150x1800 mm	2950x1150x1800 mm
	3450x1150x1800 mm	3450x1150x1800 mm	3450x1150x1800 mm	3450x1150x1800 mm
Net Weight	3200 kg	2850 kg	3350 kg	2850 kg
	3500 kg	3150 kg	3650 kg	3150 kg
	4000 kg	3400 kg	4200 kg	3400 kg
	4250 kg	3800 kg	4470 kg	3800 kg

*Specifications are subject to changed without prior notice.

Accessories

Standard :

3 Jaw Self-Centering Chuck
4-Jaw Independent Chuck
Steady Rest
Follow Rest
Toolbox
Foot Stand
Foot Brake

Machine Lamp
Centre
Centre Sleeve
Oil Gun
Rear Splash Guard
Coolant System

Optional :

Revolving Center
Taper Turning Attachment
Key Way Milling Attachment
American Type Quick Change Tool Post With 3 Tools Holder

2 Axis DRO
Tool Post Grinder with Electrical Motor
Drill Chuck With Arbor & Socket
