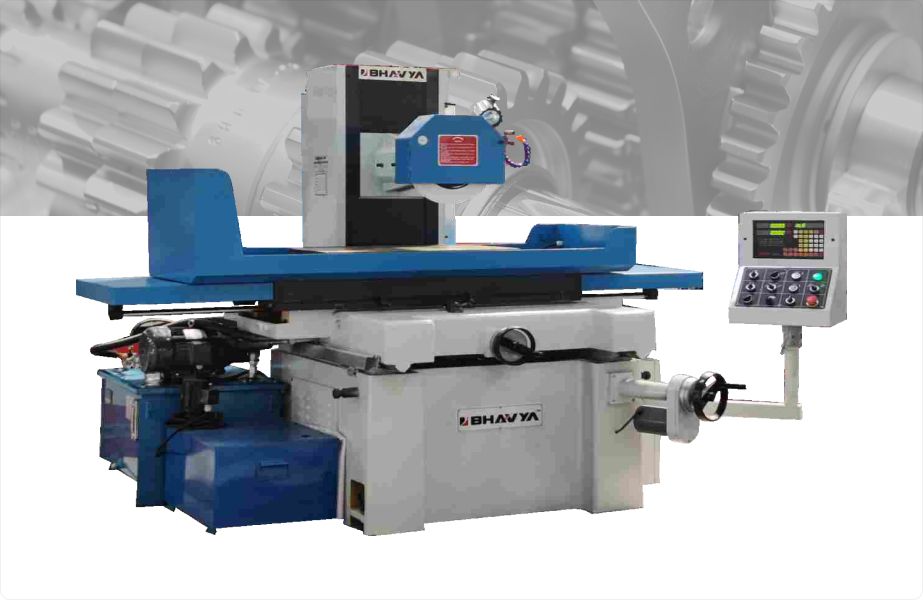

Hydraulic Surface Grinder (DRO Series)

Back

GRINDER

Model No

HSG-820
HSG-1022
HSG-1224
HSG-1230
HSG-4032

Get A Quote

Technical Specifications

Model No	HSG820	HSG1022	HSG1224	HSG1230	HSG4032
Table Size (mm)	480x200	540x250	600x300	530x220	800x400
Max. Table Travel (mm)	530×220	560×260	650×310	780×310	850x480
Max. Distance From Table To Spindle Center (mm)	450	450	530	530	600
Table Slide-Way	Double V-Type Rail	Double V-Type Rail	Double V-Type Rail	Double V-Type Rail	Double V-Type Rail
Feed Of Cross Handwheel Per Revolution (in)	0.1	0.1	0.1	0.1	0.197
Feed Of Cross Handwheel Per Graduation (in)	0.0005	0.0005	0.0005	0.0005	0.0005
Feed Of Vertical Handwheel Per Revolution (in)	0.05	0.05	0.05	0.05	0.0315
Feed Of Vertical Handwheel Per Graduation (in)	0.0002	0.0002	0.0002	0.0002	0.0005
Wheel Speed (60HZ)	3440	3440	1680	1680	1680
Wheel Size (WA46K5V)	200x31.75x20	200x31.75x20	300x75x30	300x75x30	355x127x40
Power Of Spindle Motor (W)	1100	1500	2200	2200	4000
Hydraulic Station Motor (W)	1500	1500	2200	2200	2200
Working Pressure (Mpa)	3	3	4	4	4
Max. Runoff (L/min)	18	18	20	20	20
Fuel Tank Capacity (L)	80	80	100	100	100
Coolant Pump (W)	40	40	40	40	125
Machine Net weight(Kg)	750	900	1300	1400	2600
Packing Gross Weight (Kg)	850	1000	1400	1530	2800
Machine Size (LxWxH) (M)	1680x1400x1800	1800x1400x1800	1800x1400x1800	1890x1500x1830	2350x2100x2000
Packing Size (M)	1630x1140x1960	1630x1250x1890	2000x1600x2020	2000x1600x2030	2400×2150×2200

*Specifications are subject to changed without prior notice.

Photo Gallery

HSG-1224
