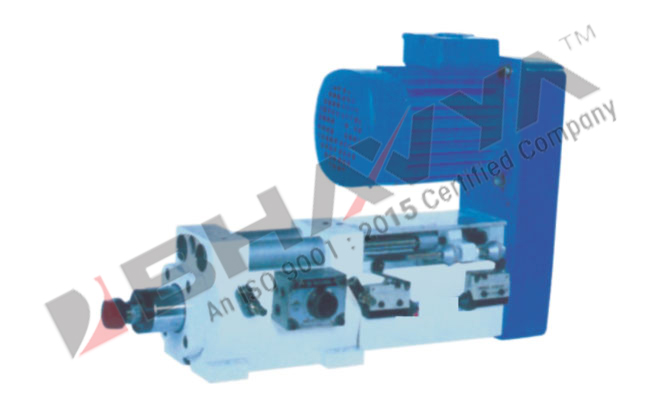

Lead Screw Tapping Head - Drilling & Tapping Machine

Specification / Model	BT-100H	BT-120H	BT-140H
Max. Tapping Capacity	M 10	M 20	M 30
Spindle Travel	100	120	140
Spindle rpm	600.1000.1500	Optional	Optional
Motor HP	1	2	3
Spindle Transmission	Lead Screw	Lead Screw	Lead Screw.

Specification / Model

BT-100H

BT-120H

BT-140H

Max. Tapping Capacity

M 10

M 20

M 30

Spindle Travel

100

120

140

Spindle rpm

600.1000.1500

Optional

Motor HP

Spindle Transmission

Lead Screw

Lead Screw.
