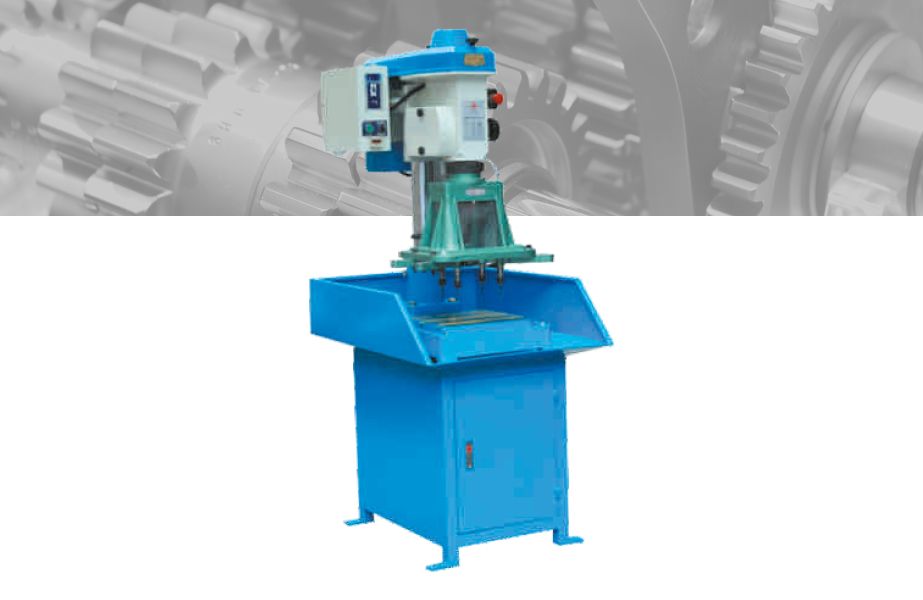

Pitch Controlled Tapping Machine

DRILL & TAPPING

Model No

JT 4508
JT 6516
JT 6532 Vertical

Get A Quote

Technical Specifications

Technical Specifications

Model	JT-4508	JT-6516	JT 6532 Vertical
Tapping Capacity for Stainless Steel	M1-M8 mm	M3-M16 mm	M8-M33 mm
Spindle Taper	MT2	M13	MT-3
Spindle Travel	60 mm	60 mm	65 mm
Size of Worktable	235 x 230 mm	340 x 360 mm	420 x 375 mm
Distance from Spindle to Table	470 mm	470 mm	450 mm
Distance between Spindle to Column	185 mm	185 mm	185 mm
Spindle Speed	1600,900,500 rpm	590,400,260 rpm	120,220,420 rpm
Motor	1HP	2HP	3HP
Overall Size	600 x 300 x 930 mm	555 x 400 x 700 mm	103 x 70 x 137 mm
Weight	120 kg	165 kg	380 kg
Screw Pitch(mm)	1.25, 1.5, 1.75, 2.0 (Extra: 2.5, 3.0, 3.5, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19)

*Specifications are subject to changed without prior notice.
