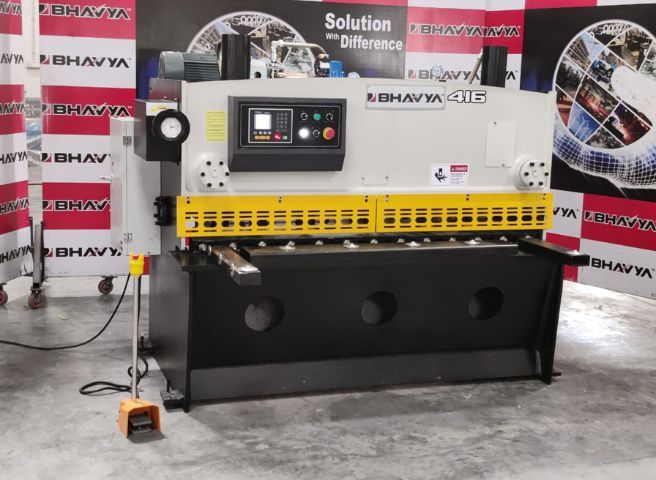

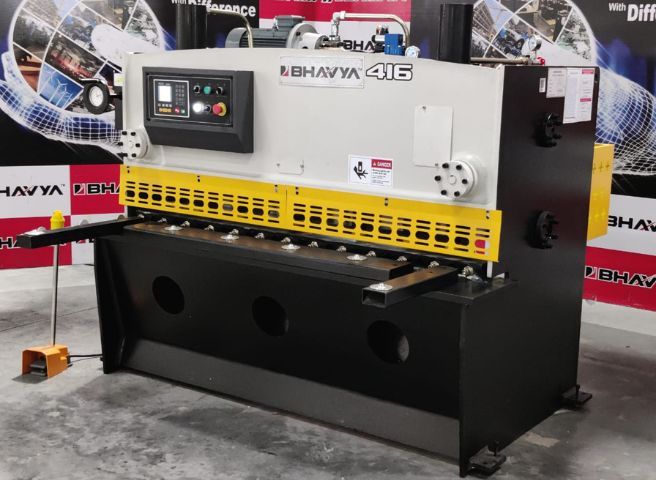

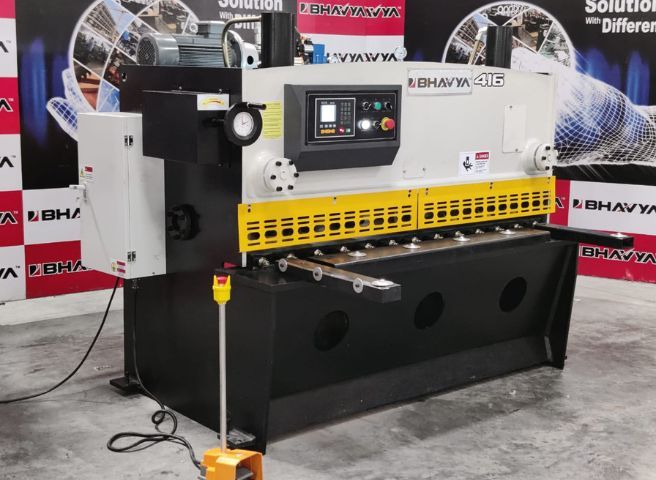

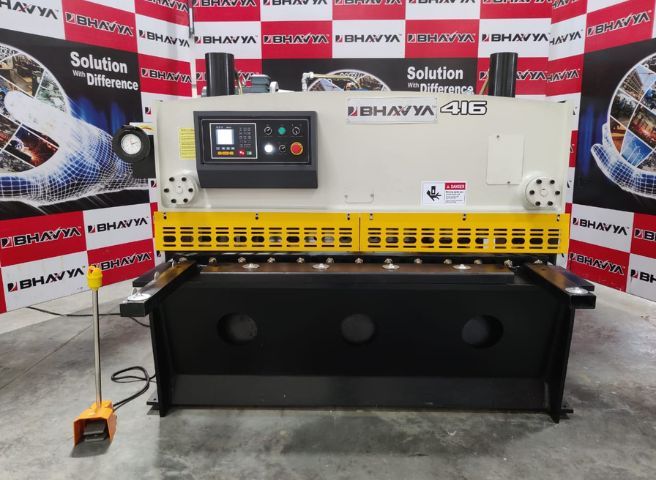

NC Guillotine Hydraulic Shearing Machine (NCGS Series)

NCG SHEARING

Model No

NCG-4
NCG-6
NCG-8
NCG-10
NCG-12

NCG-16
NCG-20
NCG-25
NCG-30
NCG-40

Get A Quote

Technical Specifications

Model	Cutting Thickness	Cutting Length	Distance between Column	Height of working table	Angle Range	Blade Clearance Adjustment	Backgauge Travel	Backguage Speed	Main Power	Overall Dimension	Weight
Type	(mm)	(mm)	(mm)	(mm)	(°)	(mm)	(mm)	(mm/sec)	(Kw)	(mm)	(kgs.)
4 x 1600	4	1600	1700	680	0.5° - 3°	0.05 - 0.8	500	120	4	2050 x 1600 x 1500	1500
6 x 1600	6	1600	1700	680	0.5° - 3°	0.05 - 0.8	500	120	4	2220 x 1700 x 1700	1800
6 x 2500	6	2500	2690	680	0.5° - 3°	0.05 - 0.8	500	120	5.5	3140 x 1740 x 2040	4700
6 x 3200	6	3200	3390	680	0.5° - 3°	0.05 - 0.8	500	120	5.5	3850 x 1770 x 2150	5500
6 x 4000	6	4000	4190	680	0.5° - 3°	0.05 - 0.8	500	120	7.5	4840 x 1840 x 2150	6500
6 x 5000	6	5000	5190	680	0.5° - 3°	0.05 - 0.8	500	120	7.5	5830 x 1840 x 2150	10500
6 x 6000	6	6000	6200	680	0.5° - 3°	0.05 - 0.8	500	120	7.5	6680 x 2100 x 2300	13500
8 x 2500	8	2500	2690	680	0.5° - 3°	0.05 - 0.8	500	120	11	3140 x 1700 x 2100	5200
8 x 3200	8	3200	3390	680	0.5° - 3°	0.05 - 0.8	500	120	11	3840 x 1700 x 2200	6000
8 x 4000	8	4000	4190	680	0.5° - 3°	0.05 - 0.8	500	120	11	4640 x 1700 x 2200	7200
8 x 5000	8	5000	5190	680	0.5° - 3°	0.05 - 0.8	500	120	11	5400 x 2400 x 2200	12000
8 x 6000	8	6000	6200	680	0.5° - 3°	0.05 - 0.8	500	120	11	6500 x 1800 x 2200	15000
8 x 8000	8	8000	8200	680	0.5° - 3°	0.05 - 0.8	500	120	11	8580 x 2130 x 2350	18000
10 x 1600	10	1600	1700	680	0.5° - 3°	0.05 - 0.8	500	120	11	2350 x 1600 x 1850	4100
10 x 2500	10	2500	2690	680	0.5° - 3°	0.05 - 0.8	500	120	11	3140 x 1800 x2300	5500
10 x 3200	10	3200	3390	680	0.5° - 3°	0.05 - 0.8	500	120	11	3850 x 1830 x2300	6500
10 x 4000	10	4000	4190	680	0.5° - 3°	0.05 - 0.8	500	120	11	4650 x 1900 x 2300	7800
10 x 5000	10	5000	5190	680	0.5° - 3°	0.05 - 0.8	500	120	15	5750 x 1900 x 2300	13500
10 x 6000	10	6000	6200	680	0.5° - 3°	0.05 - 0.8	500	120	15	6700 x 1900 x 2300	16500
10 x 8000	10	8000	8200	680	0.5° - 3°	0.05 - 0.8	500	120	15	8800 x 2200 x 2650	22000
12 x 1600	12	1500	1700	680	0.5° - 3°	0.05 - 0.8	500	120	11	2100 x 2000 x 2450	4800
12 x 2500	12	2500	2690	680	0.5° - 3°	0.05 - 0.8	500	120	15	3285 x 1830 x 2390	8000
12 x 3200	12	3200	3390	680	0.5° - 3°	0.05 - 0.8	500	120	18.5	3850 x 1830 x 2390	9000
12 x 4000	12	4000	4190	680	0.5° - 3°	0.05 - 0.8	500	120	18.5	4850 x 1830 x 2390	10500
12 x 5000	12	5000	5190	680	0.5° - 3°	0.05 - 0.8	500	120	18.5	5640 x 2000 x 2650	15000
12 x 6000	12	6000	6200	680	0.5° - 3°	0.05 - 0.8	500	120	18.5	6850 x 1930 x 2650	18000
12 x 8000	12	8000	8200	680	0.5° - 3°	0.05 - 0.8	500	120	18.5	8950 x 2130 x 2850	30000
12 x 9000	12	9000	9200	680	0.5° - 3°	0.05 - 0.8	500	120	18.5	9980 x 2300 x 2950	50000
12 x 10000	12	10000	10200	680	0.5° - 3°	0.05 - 0.8	500	120	18.5	11050 x 2500 x 3100	70000
16 x 2500	16	2500	2690	680	0.5° - 3°	0.05 - 0.8	500	120	22	3440 x 1940 x 2830	9000
16 x 3200	16	3200	3390	680	0.5° - 3°	0.05 - 0.8	500	120	22	4010 x 1940 x 2830	10000
16 x 4000	16	4000	4190	680	0.5° - 3°	0.05 - 0.8	500	120	22	5010 x 1980 x 2830	13500
16 x 5000	16	5000	5190	680	0.5° - 3°	0.05 - 0.8	500	120	22	5900 x 2600 x 2830	22000
16 x 6000	16	6000	6200	680	0.5° - 3°	0.05 - 0.8	500	120	22	6900 x 2700 x 1830	28000
16 x 8000	16	8000	8200	680	0.5° - 3°	0.05 - 0.8	500	120	22	8900 x 2900 x 3430	40000
20 x 1600	20	1600	1700	680	0.5° - 3°	0.05 - 0.8	500	120	22	2400 x 1700 x 2200	6800
20 x 2500	20	2500	2690	680	0.5° - 3°	0.05 - 0.8	500	120	30	3440 x 1980 x 2830	11000
20 x 3200	20	3200	3390	680	0.5° - 3°	0.05 - 0.8	500	120	30	4010 x 1900 x 2830	12500
20 x 4000	20	4000	4190	680	0.5° - 3°	0.05 - 0.8	500	120	30	4850 x 2600 x 2900	15000
20 x 6000	20	6000	6200	680	0.5° - 3°	0.05 - 0.8	500	120	30	6700 x 3000x 3000	31000
25 x 2500	25	2500	2690	680	0.5° - 3°	0.05 - 0.8	500	120	37	3200 x 2700 x 3000	13500
25 x 3200	25	3200	3390	680	0.5° - 3°	0.05 - 0.8	500	120	37	3800 x 2700 x 3000	12500
25 x 4000	25	4000	4190	680	0.5° - 3°	0.05 - 0.8	500	120	37	4700 x 2700 x 3000	15000
25 x 6000	25	6000	6200	680	0.5° - 3°	0.05 - 0.8	500	120	30	6700 x 3000 x 3000	60000
30 x 2500	30	2500	2690	680	0.5° - 3°	0.05 - 0.8	500	120	37	3440 x 1900 x 2830	16000
30 x 3200	30	3200	3390	680	0.5° - 3°	0.05 - 0.8	500	120	37	4200 x 1900 x 3000	19000
40 x 2500	40	2500	2390	680	0.5° - 3°	0.05 - 0.8	500	120	37	3440 x 2000 x 3000	35000

*Specifications are subject to changed without prior notice.

Accessories

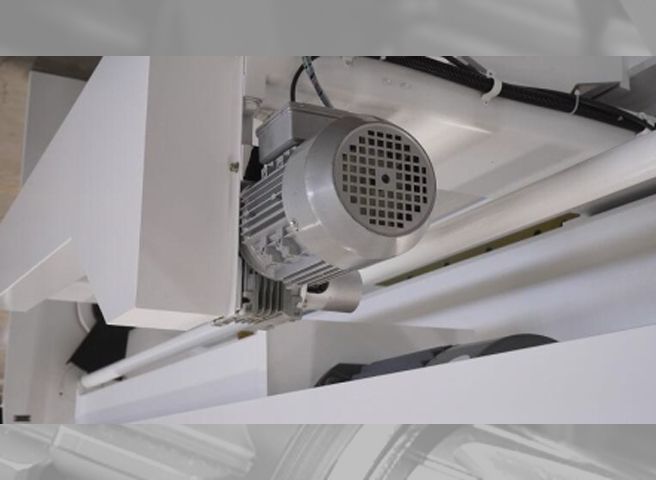

Backgauge Motor
Pipe Connectors

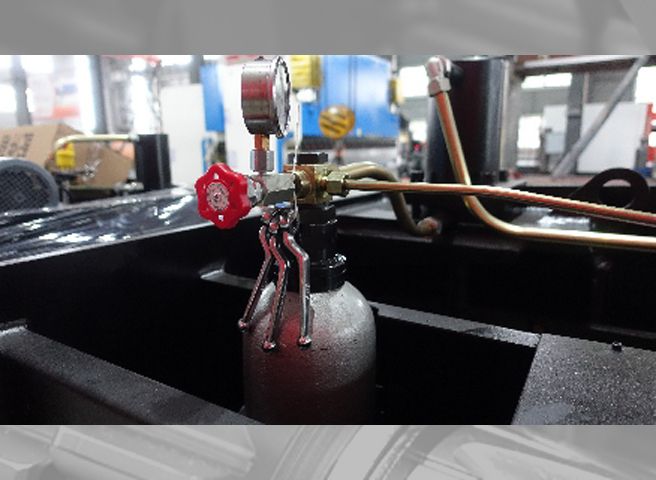

Nitrogen Cylinder

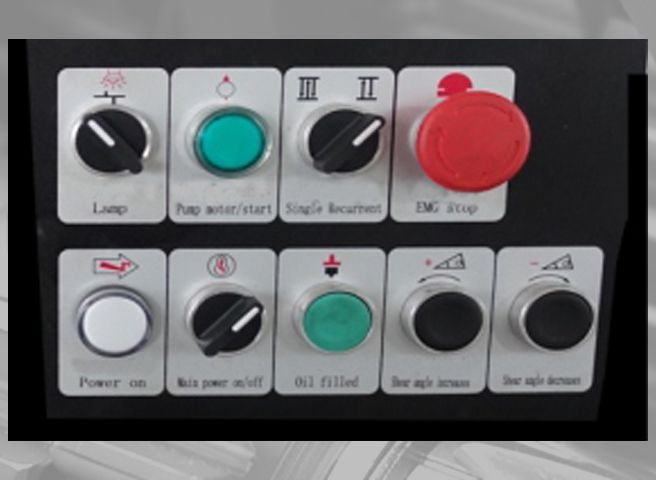

Rake Angle Adjustment

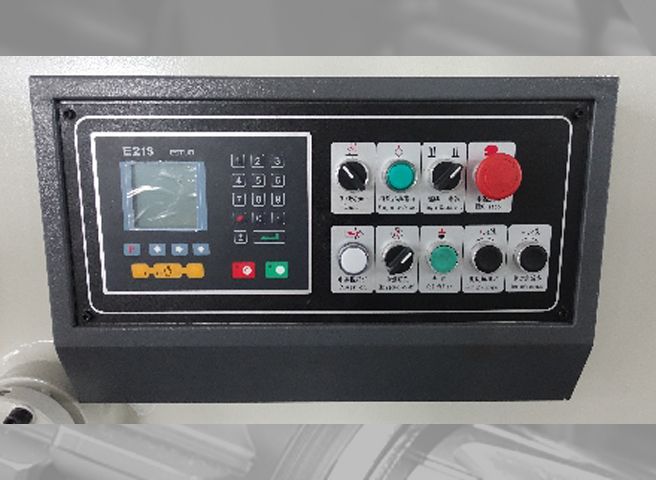

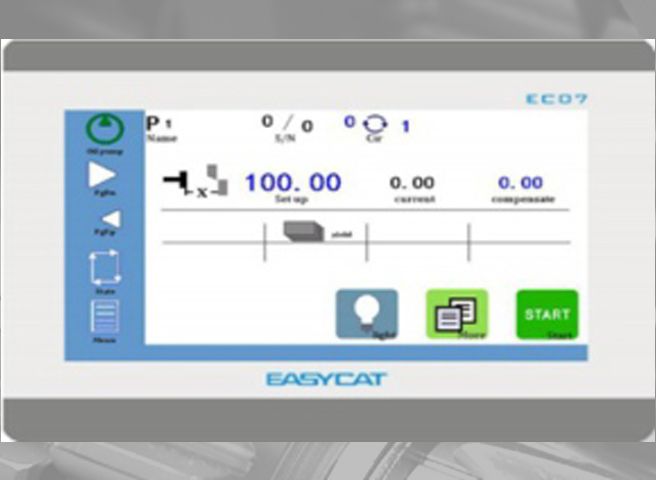

ESTUN E21S Control System

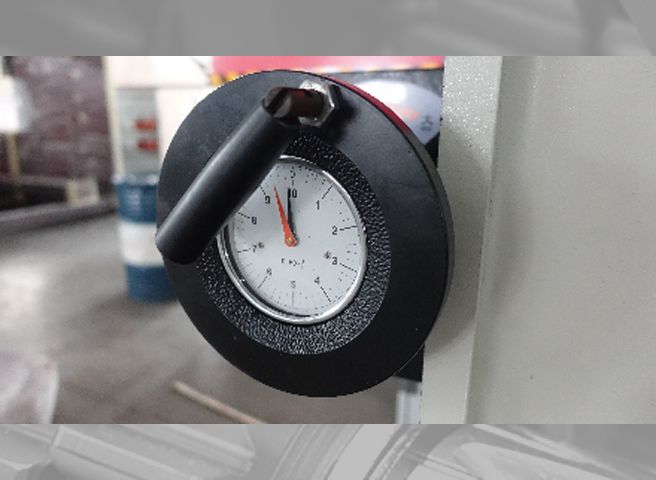

Manual Blade Gap Adjustment

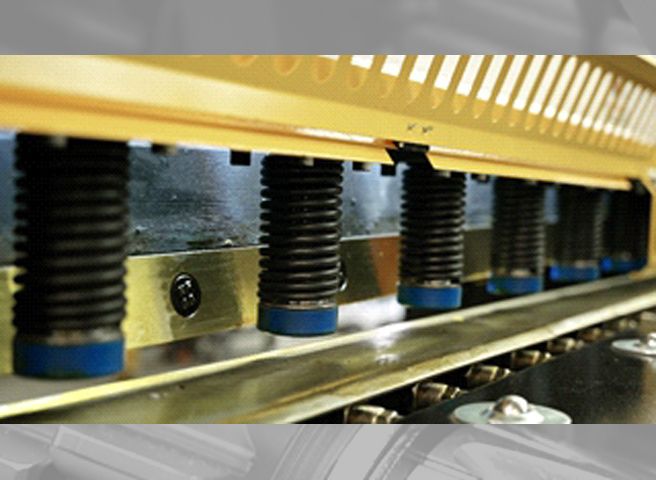

High Tensile Strength Hold Downs

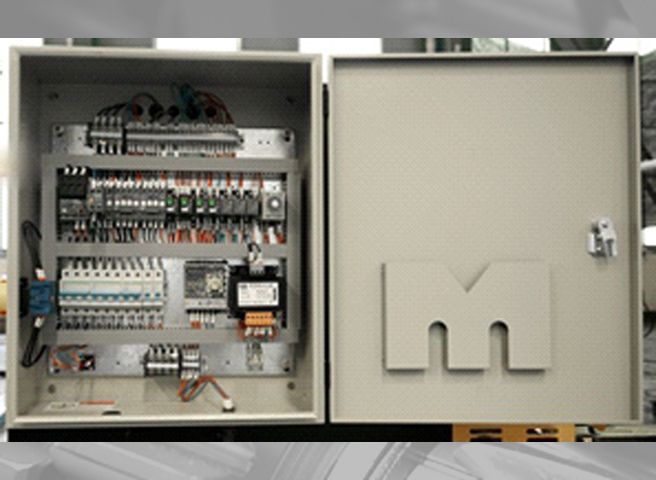

France Schneider Electric Controls

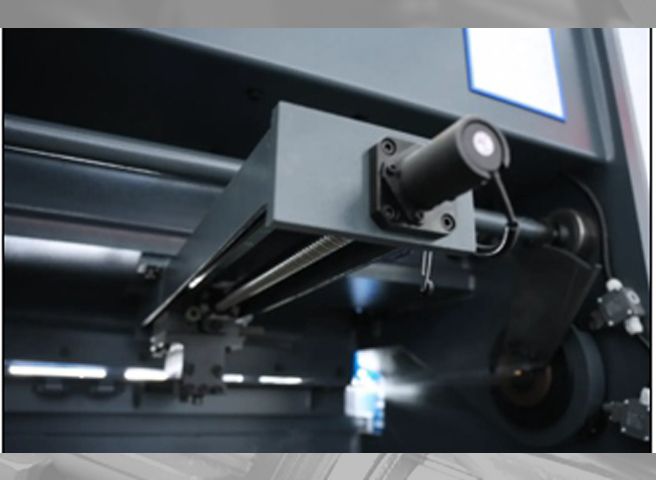

Taiwan Linear Guide and Ball Screw

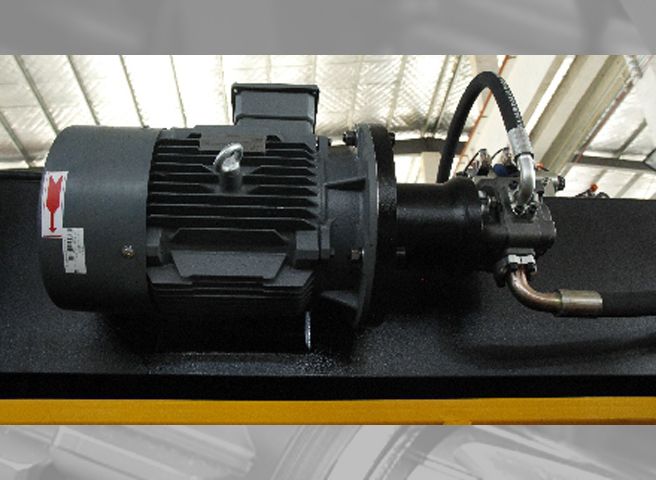

Germany Siemens Motor with Sunny Pump

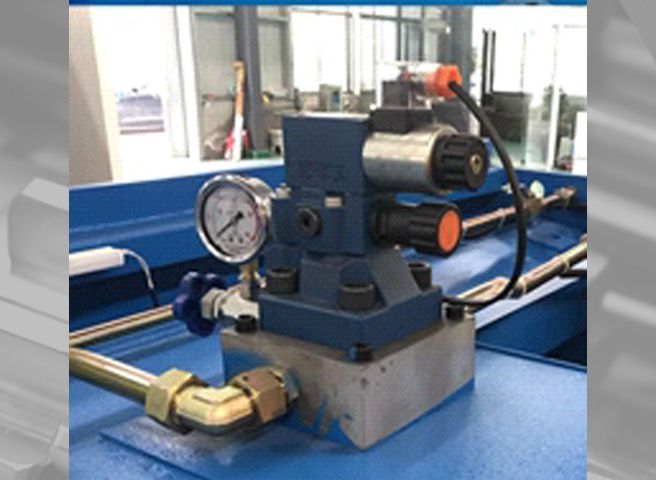

Germany Bosch Rexroth Hydraulic System

Features

Minimizes plate distortion during shearing for better quality results.
Improves precision and convenience by displaying accurate back gauge positions.
Precise, fast, and convenient adjustment of blade clearance for optimal performance.
Compact design with minimized pipe connections for improved system reliability and easy maintenance.
Steel plate welded structure, hydraulic transmission, nitrogen cylinder return, convenient operation, reliable performance, beautiful appearance.
