BUS BAR

Model No

200B

Get A Quote

Technical Specifications

Model	Unit	200B
Work Piece		Copper And Aluminum Bus Bar
Input Voltage	V	220
Rated Oil Pressure	KN	630
Max. Cut Size	mm	200 x 12
Max. Punch Size	mm	200 x 12
Max. Bend Size	mm	200 x 12
Table Size	mm	730(L) x 900(W) x 1150(H)
Table Size	mm	10.5
Diameter Of Standard	mm	13.8
Dies/Mold	mm	17
Dies/Mold	mm	20.5
Machine Weight	kg	195

Specifications are subject to changed without prior notice.

*Specifications are subject to changed without prior notice.

Accessories

Standard :

Main drive motor.
Four suitable die & punch on Punching Station.
Unhardened & ungrounded suitable bending tool.
Hardened & grounded HCHCr Blade on Shearing station.
Compact Hydraulic power pack with built in control panel.

Optional :

First Fill of oil
Special tools for bending station
Special tools for punching station

Features

The machine is equipped with three different stations.
International quality hydraulic & electrical components ensure maintenance free long life.
The Bus bar bending, cutting & punching unit machine is technologically advanced, compact & versatile machine.
The machine is designed to cater the requirement of bus bar preparation & almost all operations are included in one machine.

Photo Gallery

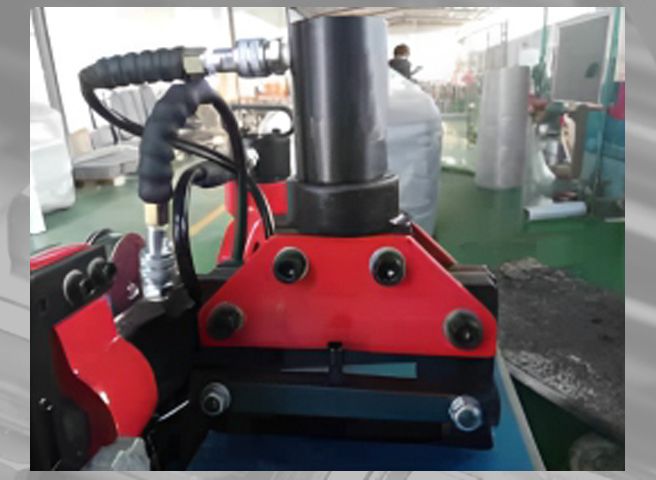

Cutting Station

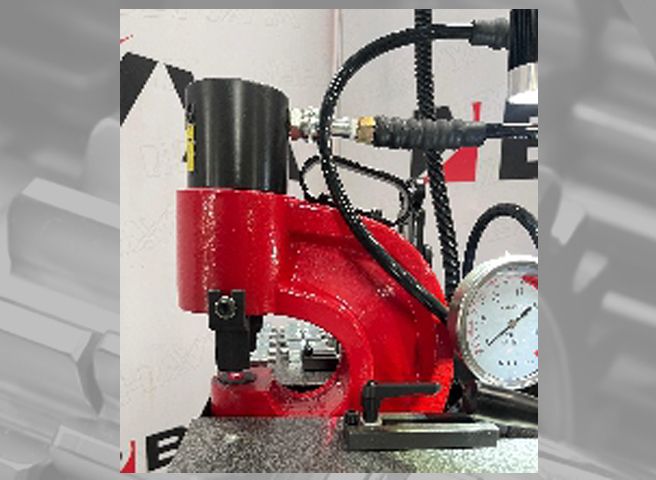

Punching Station

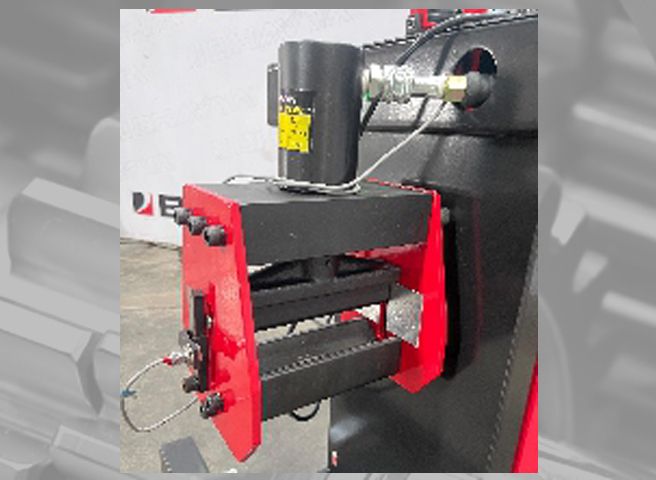

Bending Station

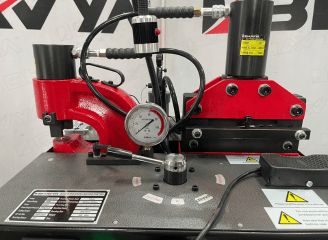

Function Switcher

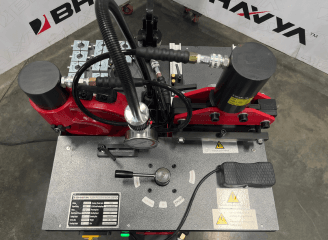

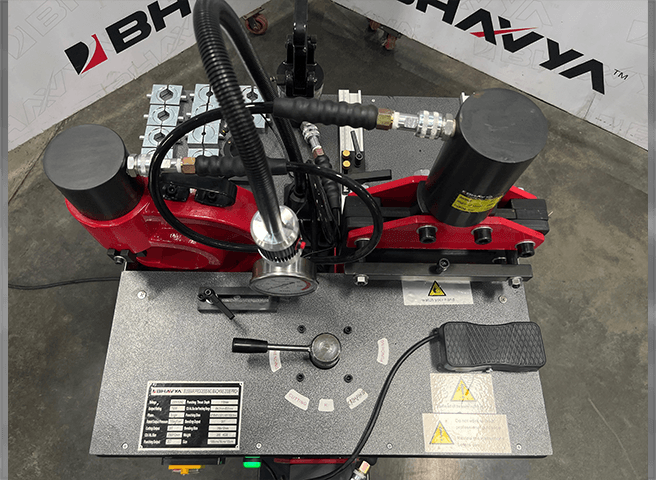

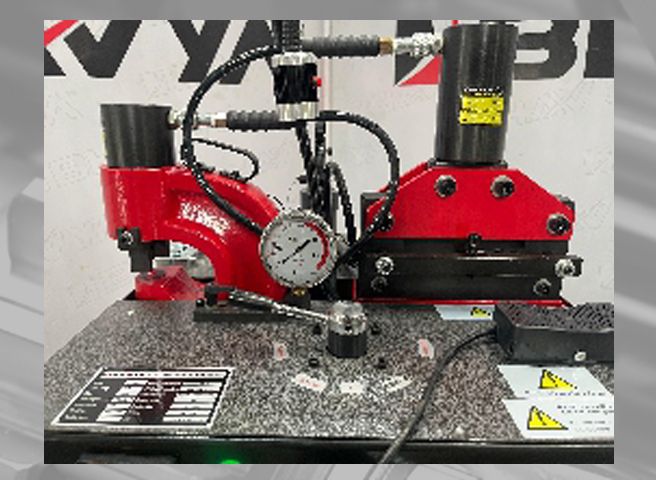

Working Table

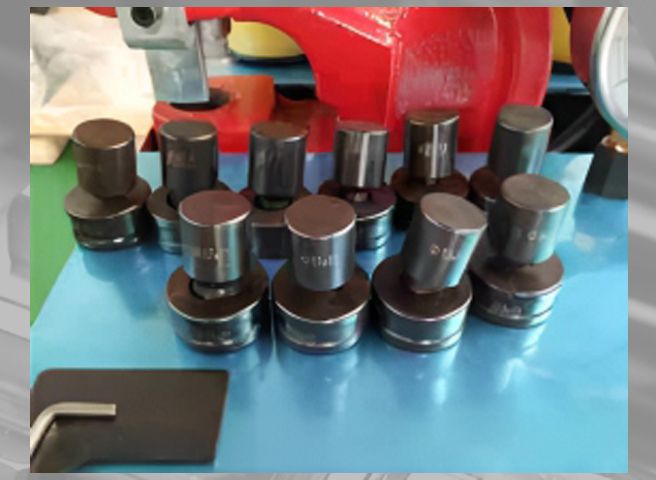

Punching Molds

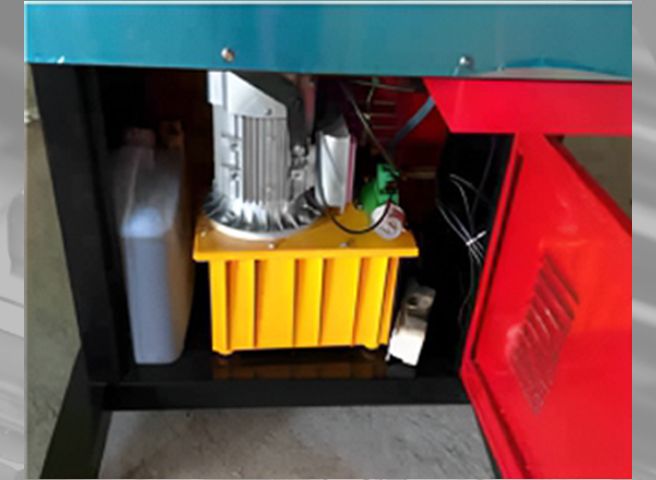

Electric Hydraulic Pump

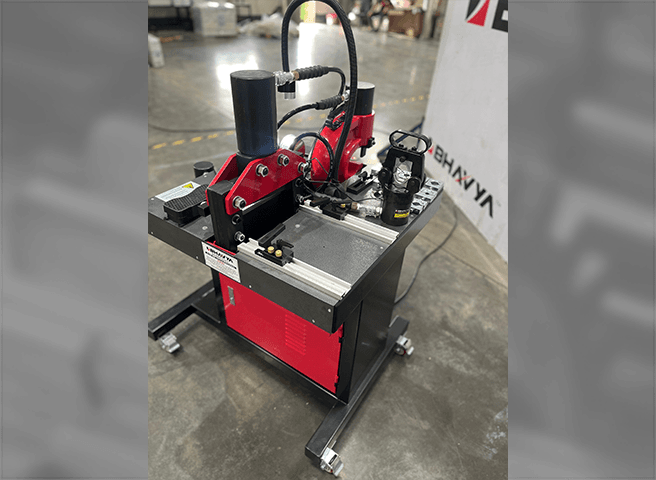

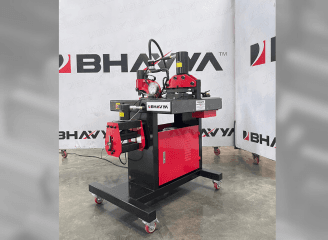

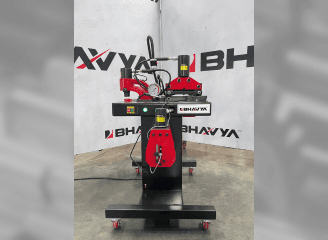

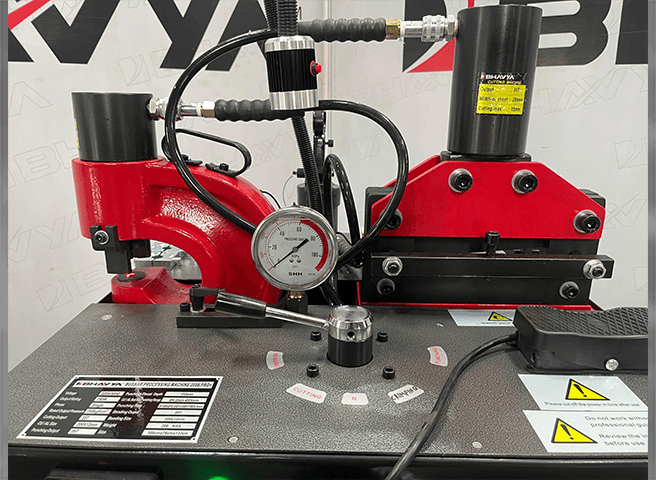

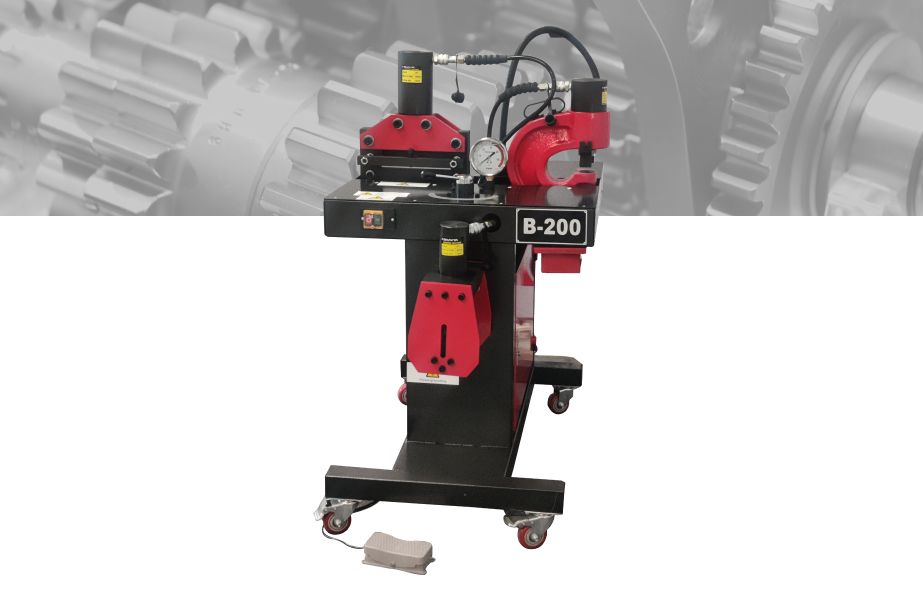

Bus Bar Machine 200B

Videos

Portable Busbar 200B
