Radial Drill ERD Series

DRILL

Model No

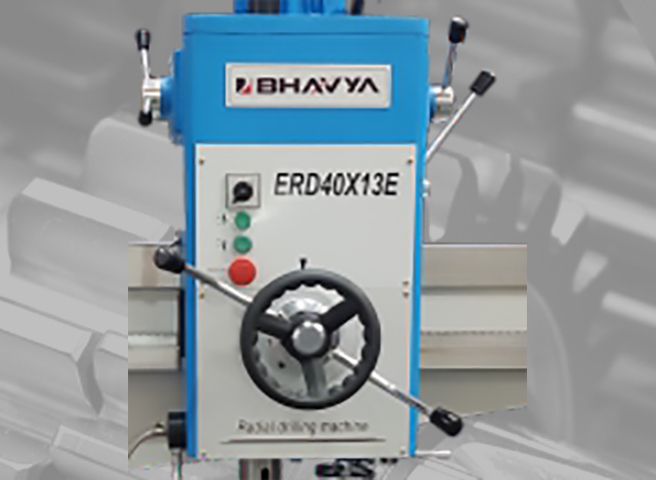

ERD 40 x 13 E
ERD 40 x 13 HE
ERD 40 x 13 HE2
ERD 40 x 11

Get A Quote

Technical Specifications

Model	ERD40x13E	ERD40x13HE	ERD40x13HE2	ERD40x11
Max. Drilling Dia(mm)	40	40	40	40
Spindle Center To Column Generating Distance	315-1195	315-1195	300-1165	350-1030
Distance Headstock Horizontal Movement	880	880	865	670
Distance From Spindle Nose To Base Surface (mm)	300-1100	300-1100	280-1130	170-1100
Rocker Rotary Angle	± 180°	± 180°	± 180°	± 90°
Spindle Taper	MT4	MT4	MT4	MT4
Spindle Column Diameter (mm)	230	230	230	230

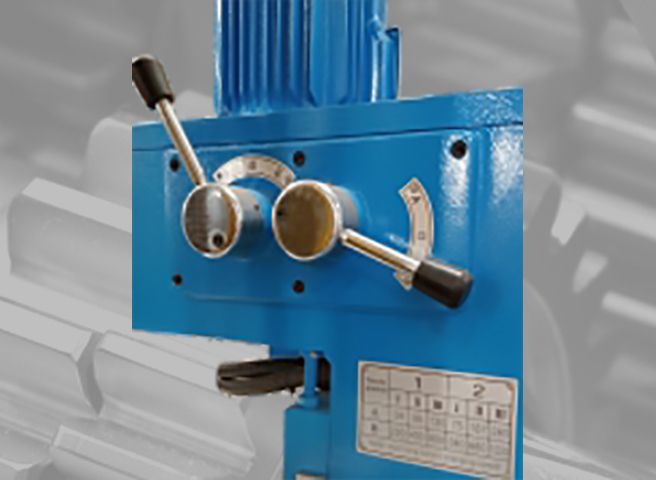

Range of Spindle Speeds (rpm)	34-1220	34-1220	22-1400	40-1896
Spindle Speed Series	12 steps	12 steps	12 steps	12 steps

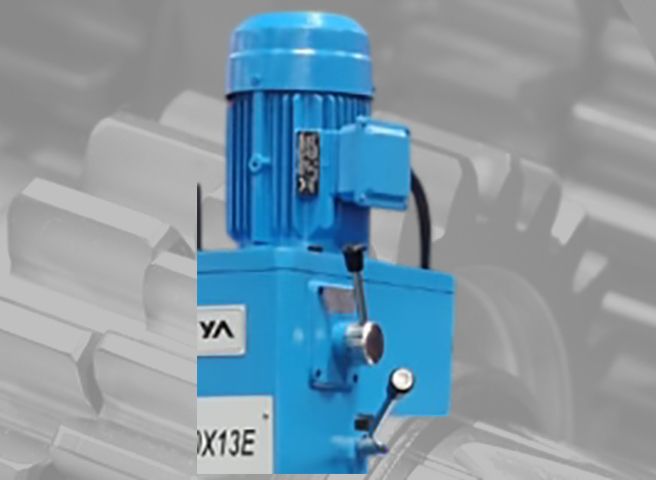

Spindle Feeding Range (rpm)	0.10-0.25	0.10-0.25	0.10-0.25	0.13-0.54
Spindle Feeding Step	3	3	3	4
Spindle Travel (mm)	195	195	280	260
Main Motor Power (kw)	1.5/2.2	1.5/2.2	3	3
Lifting Motor Power (KW)	1.1	1.1	1.1	1.1
Box Table Size (MM)	530x420x335	530x420x330	530x420x335	560x380x300
Machine Approx Weight (Kgs)	1200	1400	1600	1500
Overall Dimensions (MM)	1750x770x2250	1850x800x2350	1880x820x2350	1800x820x2000

*Specifications are subject to changed without prior notice.

Accessories

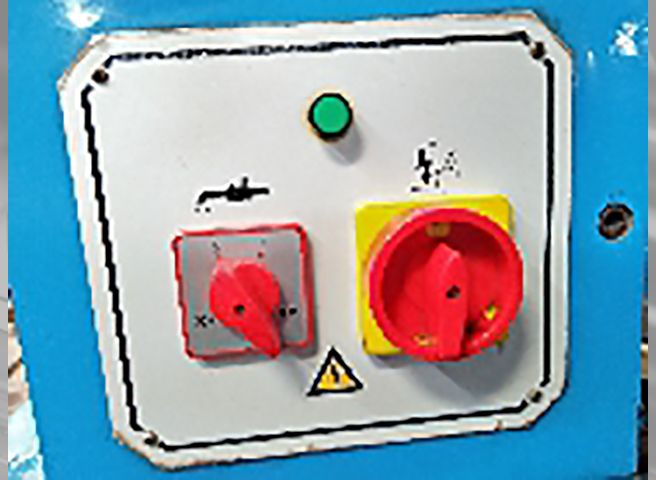

All Electrical Motors

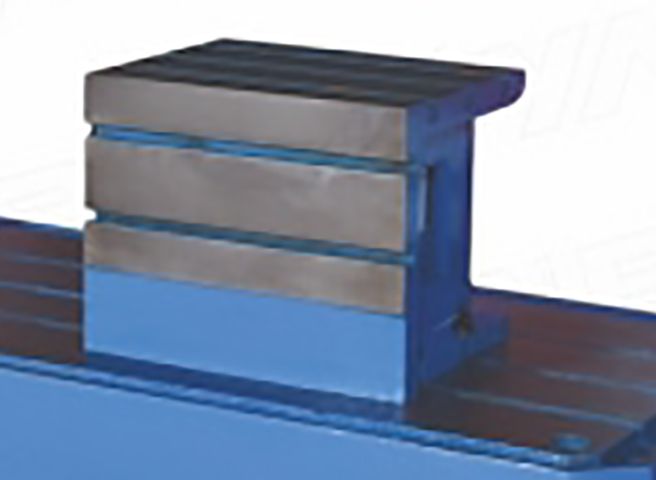

Box Table

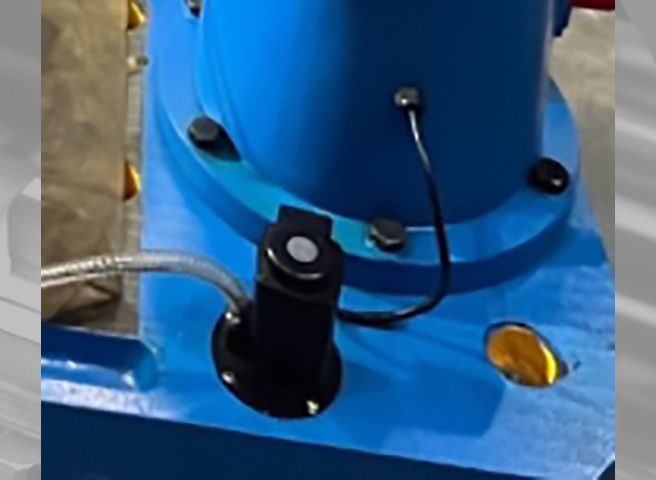

Coolant pump with Fitting

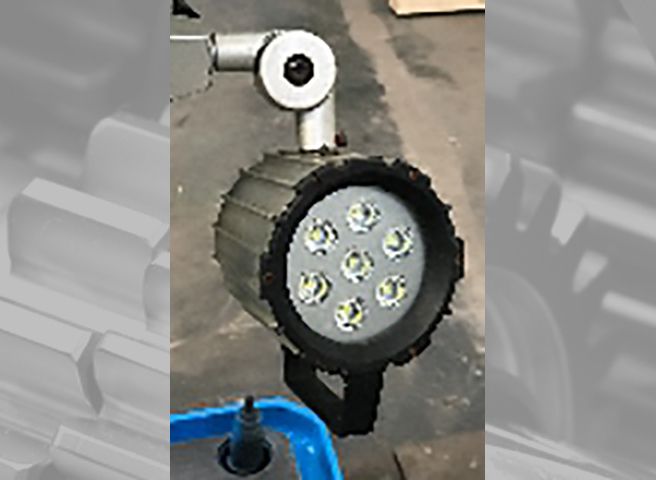

Machine Lamp

Tool Box
Foundation Bolts
Drill Chuck with shank
Taper Sleeve Set (MT4-3, MT4-2)

Photo Gallery

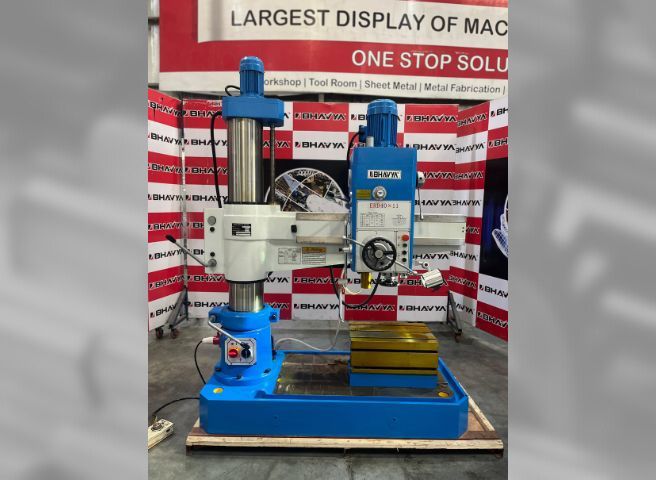

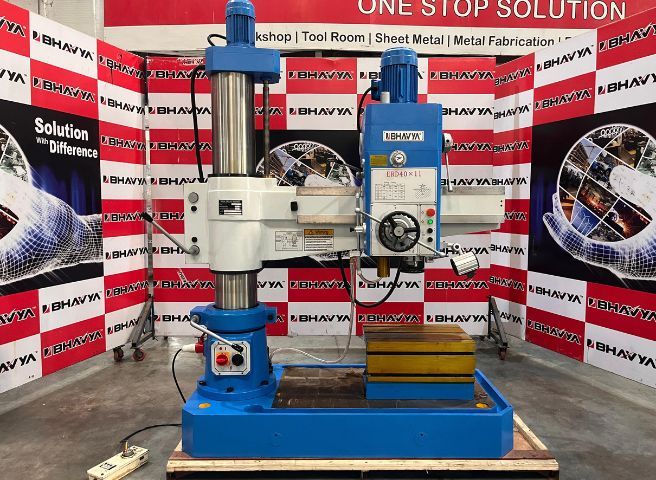

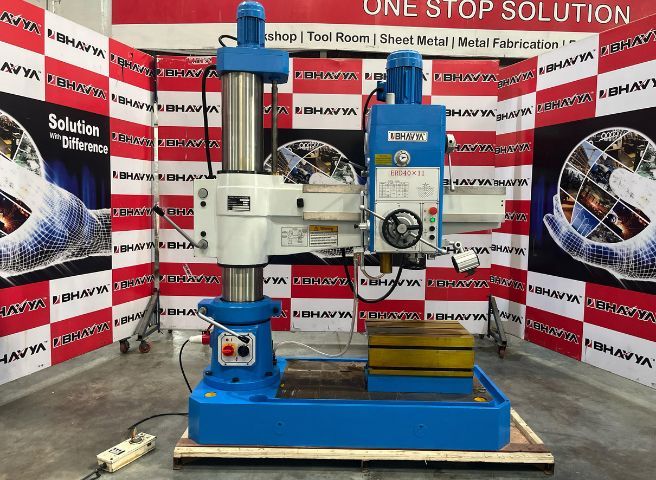

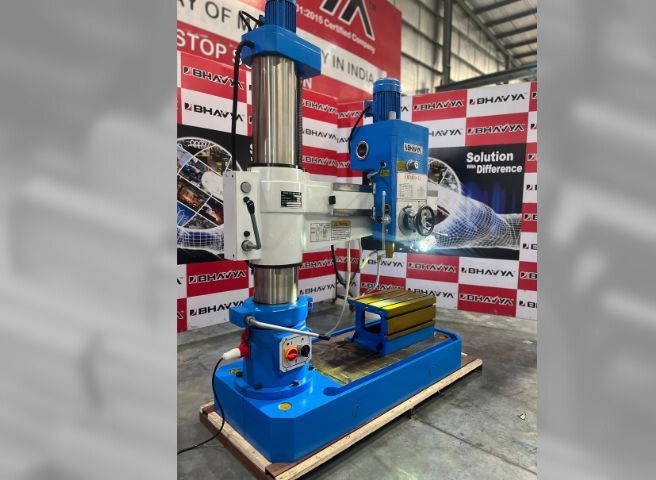

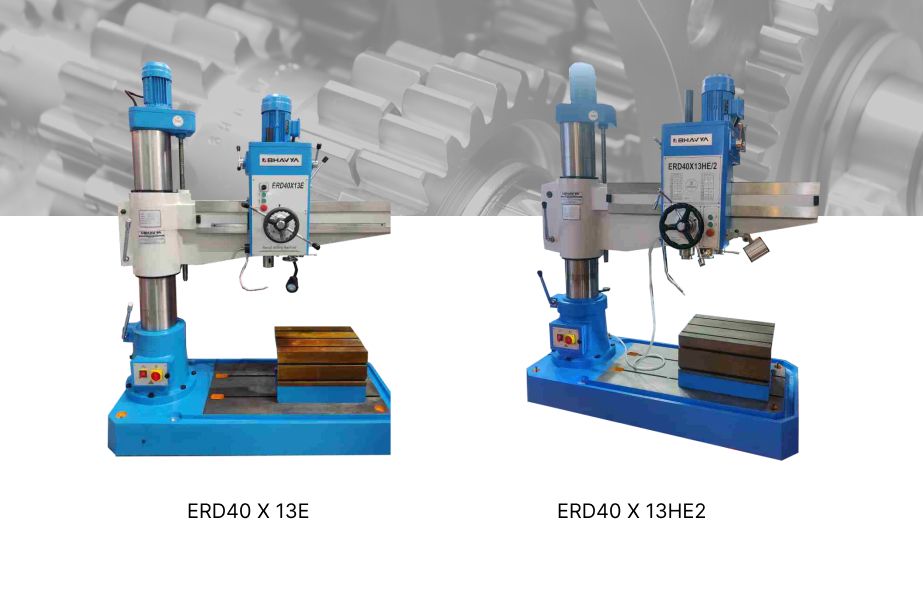

ERD-40x13E
