Vertical Turret Milling Machine

Vertical Turret Milling Machine
MILLING

Model No

  • M3

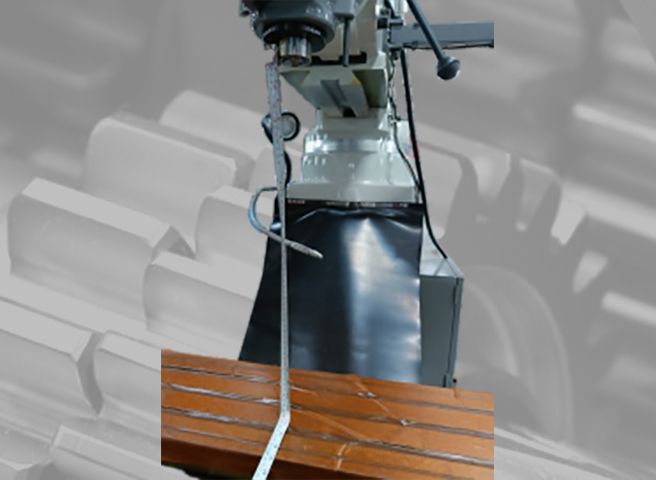

  • M3H
  • M4
  • M4A
  • M4S
  • M4SA
  • M5
  • M5Z

Technical Specifications

Model M3 M3H M4 M4A M4S M4SA M5 M5Z

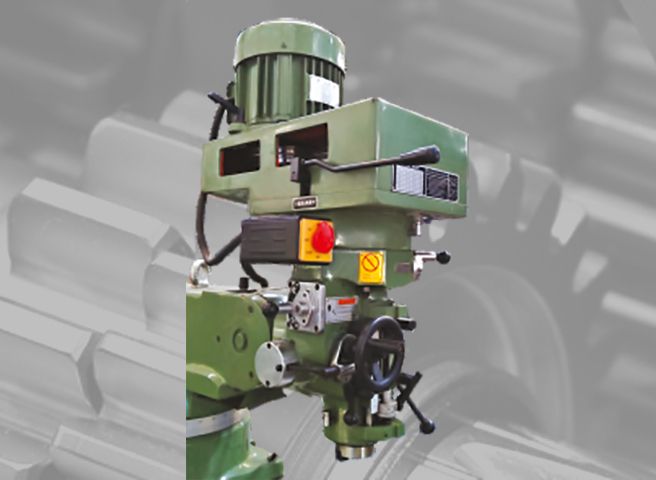

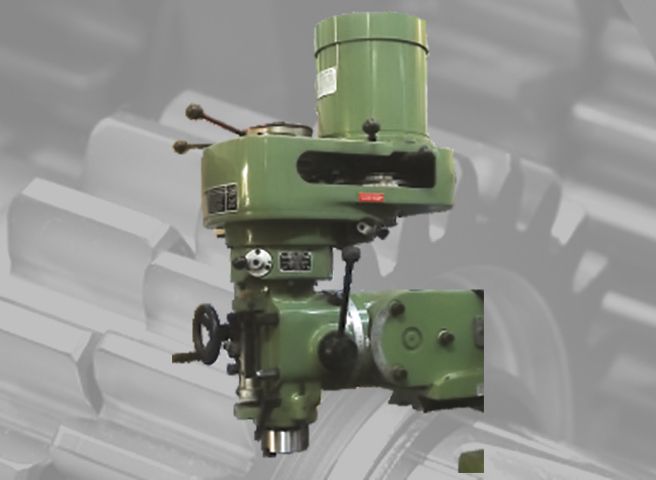

Milling Head Round Round Round Round Square Head Square Head Round Round
Table Size 1270 x 254mm 1270 x 254mm 1370 x 254mm 1370 x 254mm 1370 x 254mm 1370 x 305mm 1370 x 305mm 1370 x 305mm
T-Slot (No./Size/Distance) 3/16mm/65mm 3/16mm/65mm 3/16mm/65mm 3/16mm/65mm 3/16mm/65mm 3/16mm/65mm 3/16mm/65mm 3/16mm/65mm
Max Load on Table 300 Kgs 300 Kgs 300 Kgs 300 Kgs 300 Kgs 300 Kgs 350 Kgs 350 Kgs
X-Axis Travel 760mm 760mm 860mm 860mm 860mm 860mm 860mm 860mm
Y-Axis Cross Travel 400mm 400mm 400mm 400mm 400mm 400mm 380mm 380mm
Z-Axis Vertical Travel 405mm 500mm 405mm 405mm 405mm 480mm 360mm 360mm
X-Axis Guide Way ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲

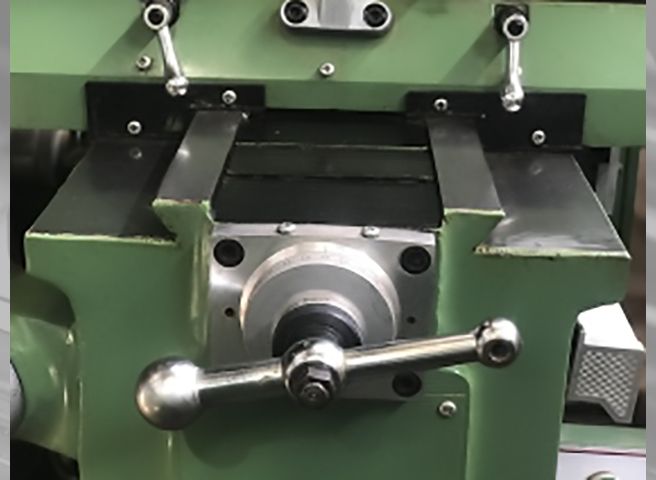

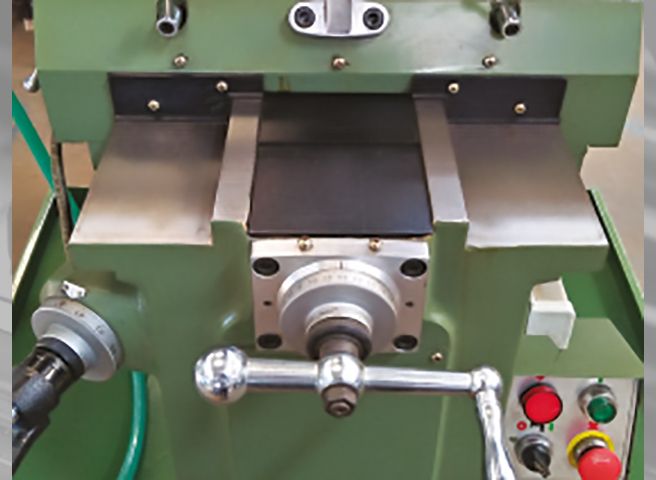

Y-Axis Guide Way ▲ ▲ ▲ ▬ ▬ ▬ ▬ ▬

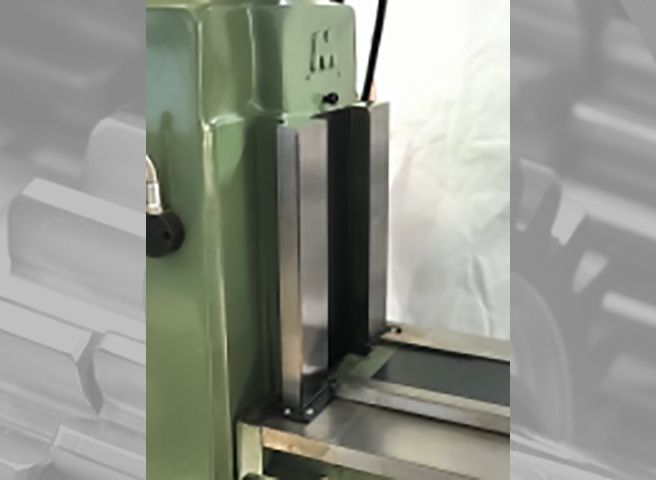

Z-Axis Guide Way ▲ ▲ ▲ ▲ ▲ ▲ ▲ ▲
Ram Travel 510mm 510mm 510mm 580mm 580mm 580mm 580mm 580mm
Spindle Taper R8(NT30/NT40-Optional) R8(NT30/NT40-Optional) R8(NT30/NT40-Optional) R8(NT30/NT40-Optional) R8(NT30/NT40-Optional) R8(NT30/NT40-Optional) R8(NT30/NT40-Optional) R8(NT30/NT40-Optional)
Spindle Quill Travel 127mm 127mm 127mm 127mm 127mm 127mm 127mm 127mm
Quill Feed 0.04, 0.08, 0.15 0.04, 0.08, 0.15 0.04, 0.08, 0.15 0.04, 0.08, 0.15 0.038, 0.076, 0.20 0.038, 0.076, 0.20 0.038, 0.076, 0.20 0.038, 0.076, 0.20
No. of Spindle Speeds 16 16 16 16 16 16 16 16
Range Of Spindle Speed 80-5440rpm 80-5440rpm 80-5440rpm 80-5440rpm 66-4540rpm 70-3600rpm 66-4540rpm 66-4540rpm
Spindle Nose To Table 70-470mm 70-600mm 70-470mm 70-470mm 70-470mm 70-600mm 70-550mm 70-550mm

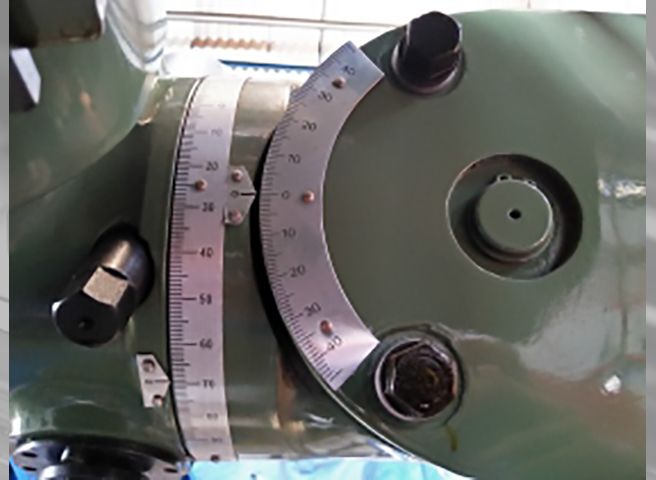

Head Tilt +90° Left & Right ±45° Front & Back +90° Left & Right ±45° Front & Back +90° Left & Right ±45° Front & Back +90° Left & Right ±45° Front & Back +90° Left & Right ±45° Front & Back +90° Left & Right ±45° Front & Back +90° Left & Right ±45° Front & Back +90° Left & Right ±45° Front & Back
Motor Power 3 HP 3 HP 3 HP 3 HP 3 HP 3 HP 5 HP 5 HP

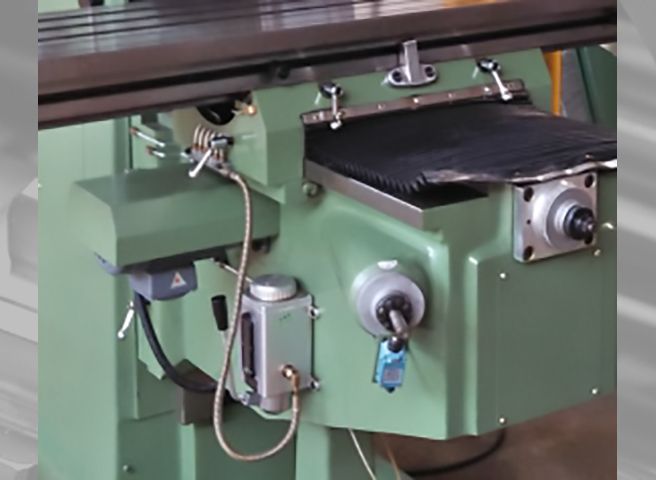

Motor Power-Z Axis - - - - - 0.5HP - 0.5HP
Weight 1200Kgs 1250Kgs 1250Kgs 1300Kgs 1400Kgs 1425Kgs 1500Kgs 1525Kgs

*Specifications are subject to changed without prior notice.

Accessories

Standard :
  • 2 Axis DRO

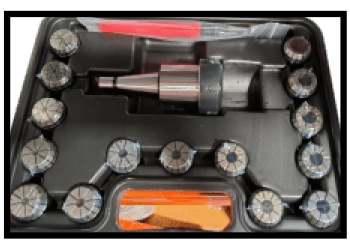

  • Collet Set

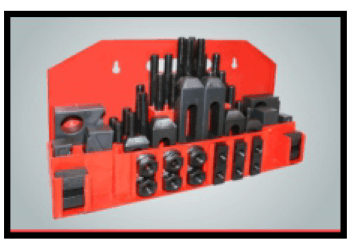

  • Clamping Kit 52 Pcs.

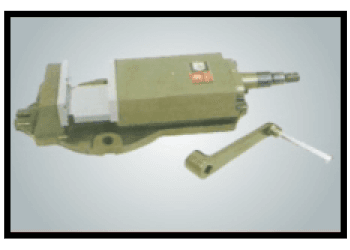

  • Machine Vice

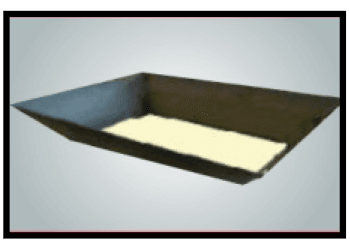

  • Chip Pan Tray
Optional :

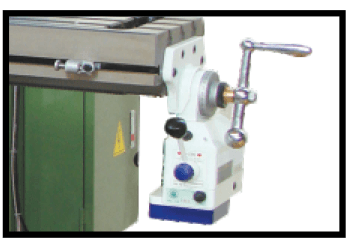

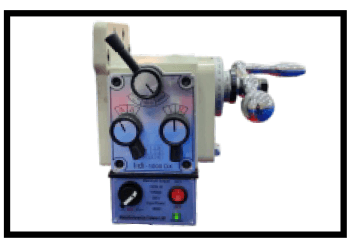

  • X & Y Axis Power Feed
  • Keyless Drill Chuck

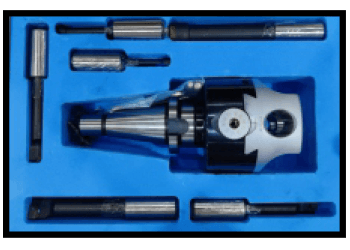

  • Boring Head Set
  • Right Angle Attachment

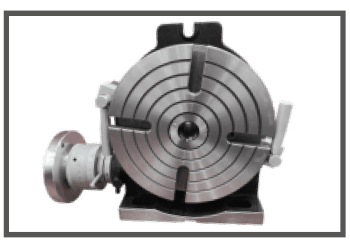

  • Rotary Table

Videos

Turret Milling Machine (M3 Vertical Milling Machine)

Turret Milling Machine (M3 Vertical Milling Machine)

Turret Milling Machine (Model - M4S)

Turret Milling Machine (Model - M4S)

Turret Milling Machine (Model – M5)

Turret Milling Machine (Model – M5)
